Hormann UAP-1-HCP Universal Adaptor Board - Series 4 Operators

Description

1 x Universal Adaptor Board suitable for Hormann Promatic & Supramtic Series 4 motor units
This part is an add-on to the above motor units and plugs in via a telephone socket type connector and lets you connect to almost any HCP2 compatible device. It is an external relay module which is primarily responsible for selecting the direction (on/off/close) via external controls and/or controlling the drive lighting, partial open position and ventilation position. In addition, you can check the position of your automated garage door.
Searches for your garage door gate positions and many other functions (e.g. controlling garage lighting and other lighting fixtures on your property).
Weatherproof and dust resistant housing (protection class IP 65).
6 entrances: open door, gate closing, partial opening, ventilation position, training light, stop.

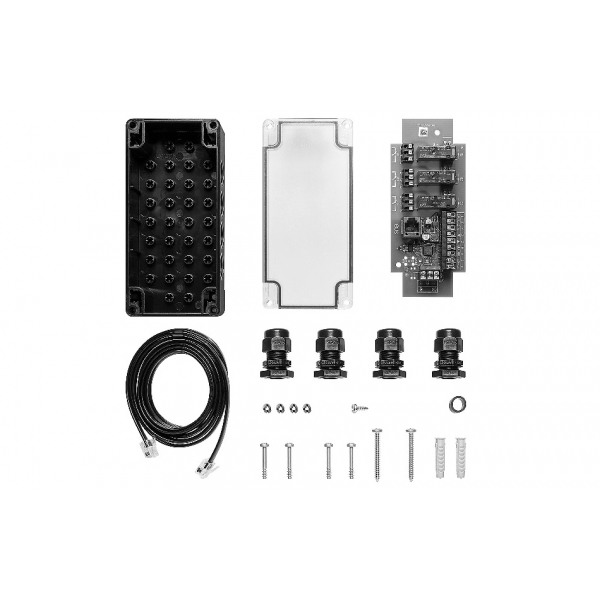

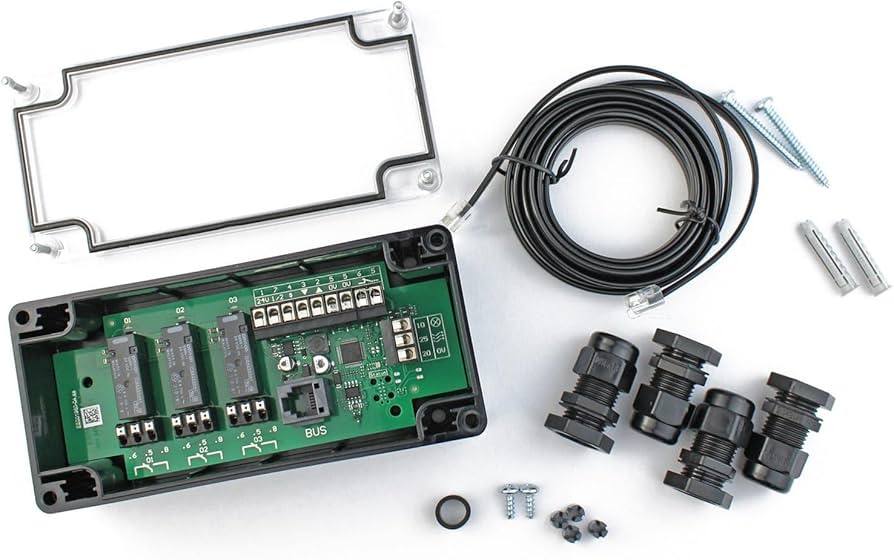

Comes with fixings as shown in the images:
Hörmann UAP 1 HCP Universal Adapter Board
Mounting and mounting material.
System cable (2 m).
Wiring diagram
Instructions
Hormann Part No: 4514082 / UAP 1-HCP
Dimensions (W x H x D): 110 x 70 x 55 mm.
Please see our related products area for the options relay and other parts.
