Garage Door Roller Spindle Finder

Manufacturer	Image (Click to Enlarge)	Name (Click for more info)	Spindle Overall Length (mm)	Length Under Roller (mm)	Spindle Diameter (mm)	Roller Diameter (mm)

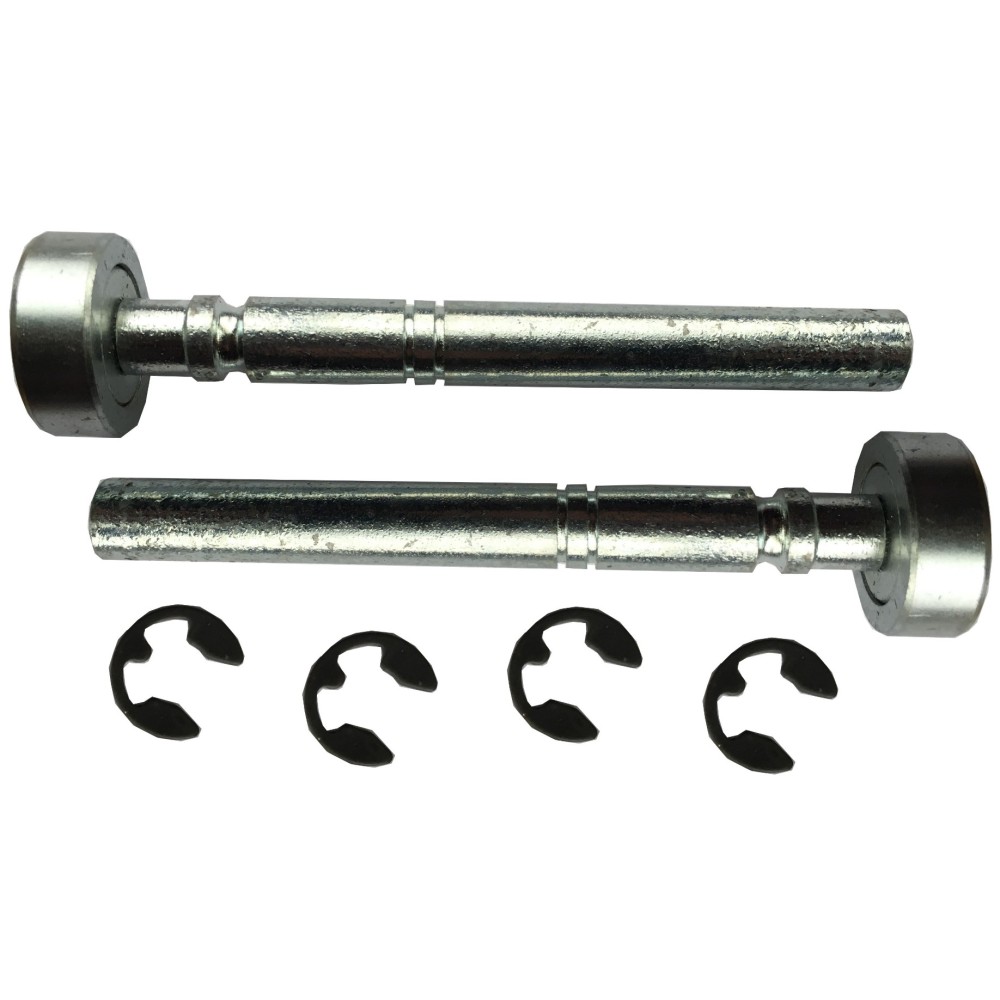

Apex / Bolton Gate		Apex Bolton Gate Canopy Roller Spindles	110mm	100mm	11mm	25mm

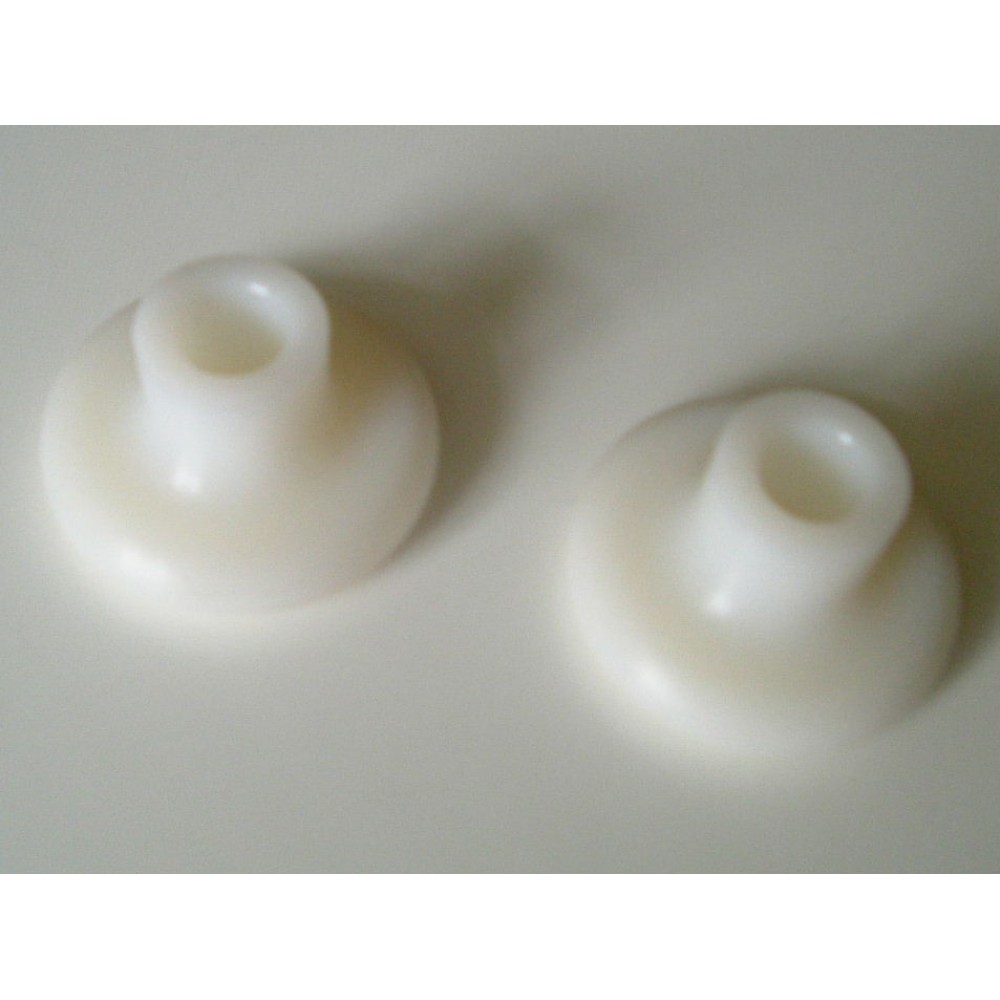

Apex / Bolton Gate		Apex Bolton Gate Retractable Nylon Rollers

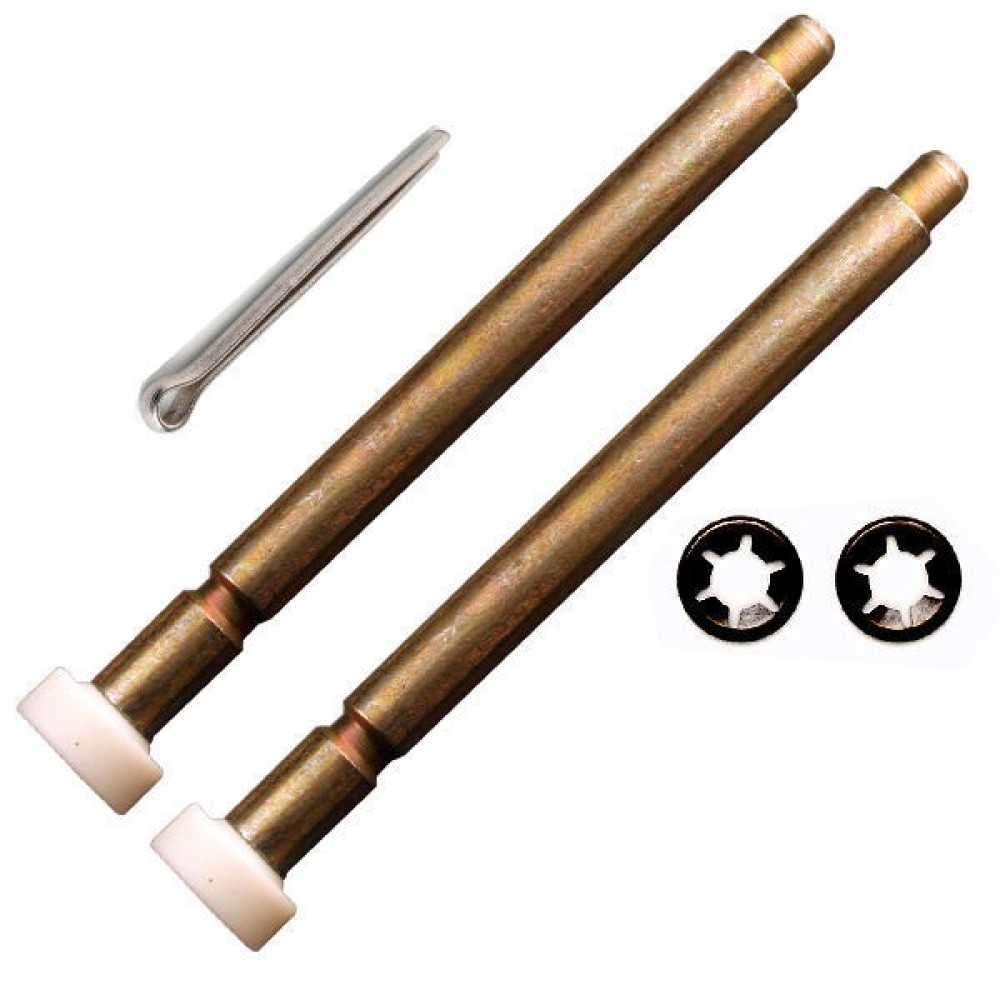

Apex / Bolton Gate		Apex CD45 Roller Spindles 160mm	160mm	150mm	12mm	22mm

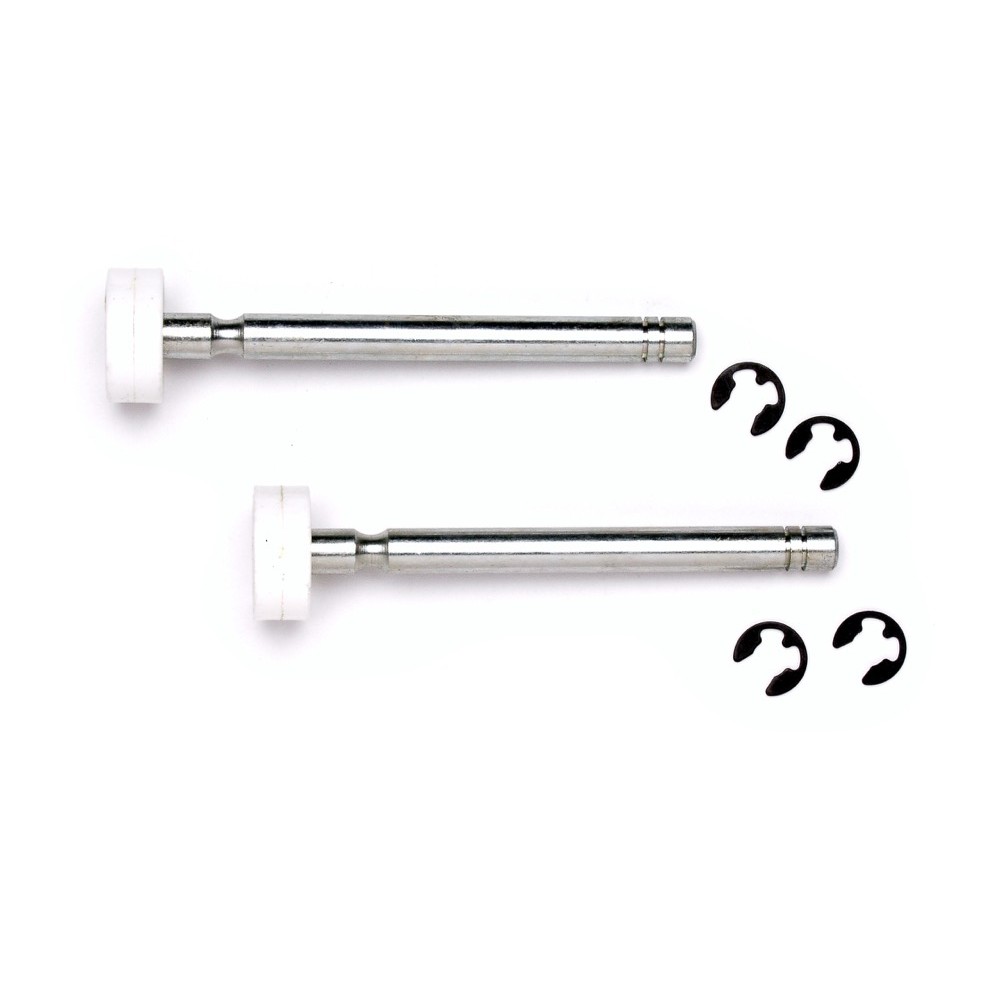

Birtley		Birtley Canopy Roller Spindles	140mm	127mm	11mm	32mm

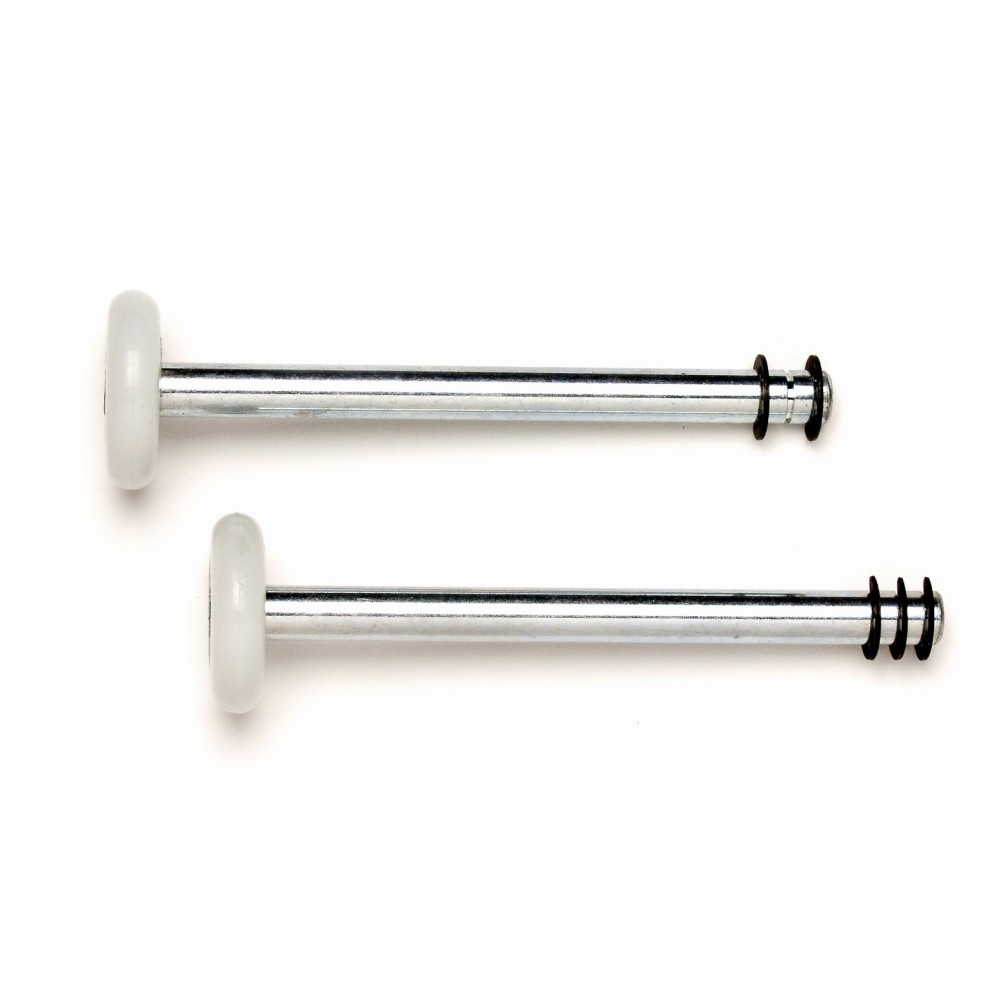

Birtley		Birtley Retractable Roller Spindles	170mm	157mm	12mm	46mm

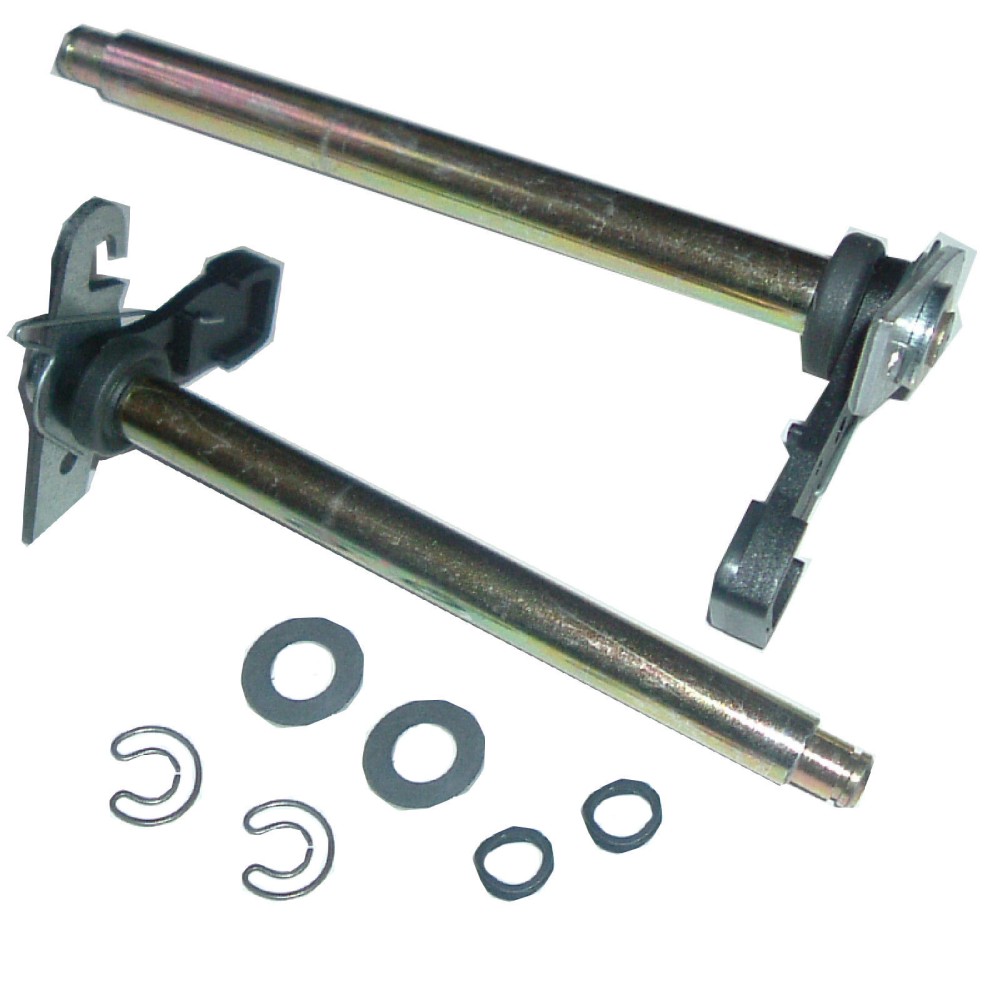

Cardale		Cardale CD Pro Anti-Drop Safelift Roller Spindles FIBREGLASS GRP 163mm	163mm

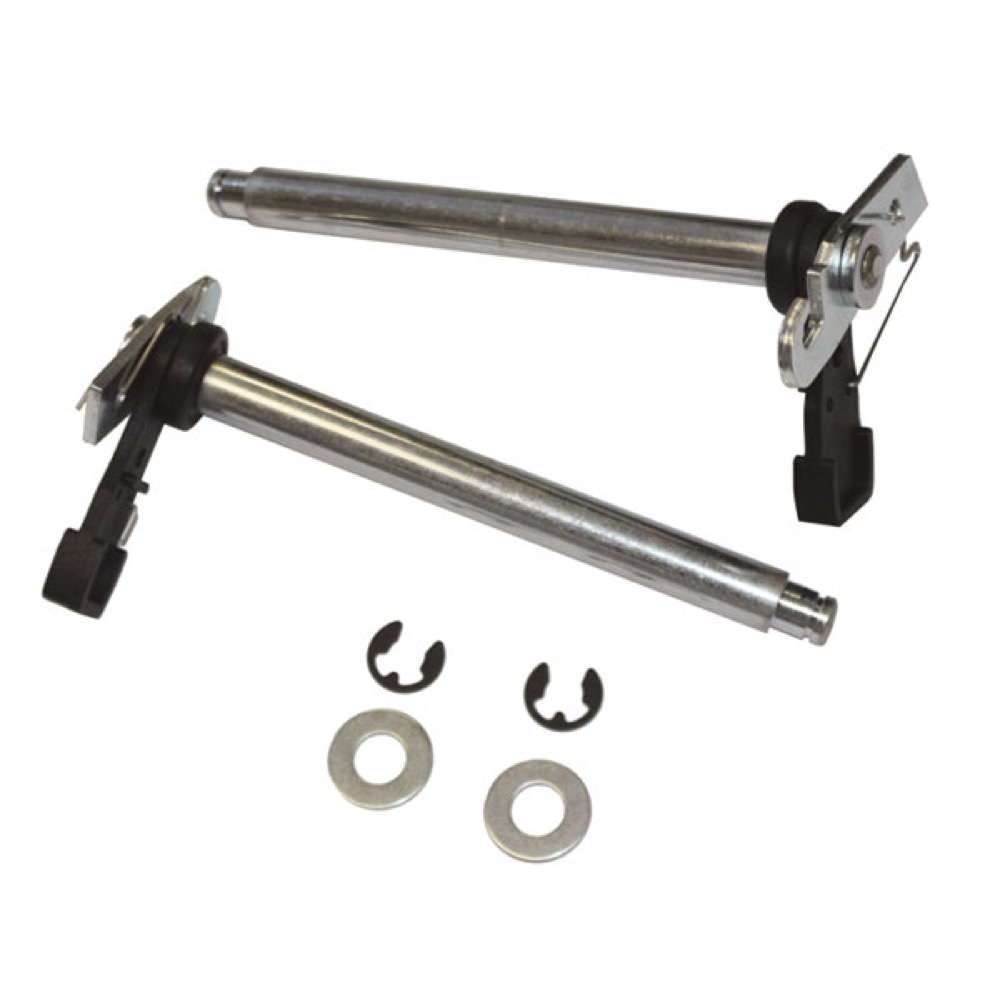

Cardale		Cardale CD Professional Anti-Drop Safelift Roller Spindles 153mm	153mm
Cardale		Cardale CD45 GRP / FIBREGLASS Roller Spindles 168mm	168mm	150mm	12mm	22mm
Cardale		Cardale CD45 Roller Spindles 160mm	160mm	150mm	12mm	22mm

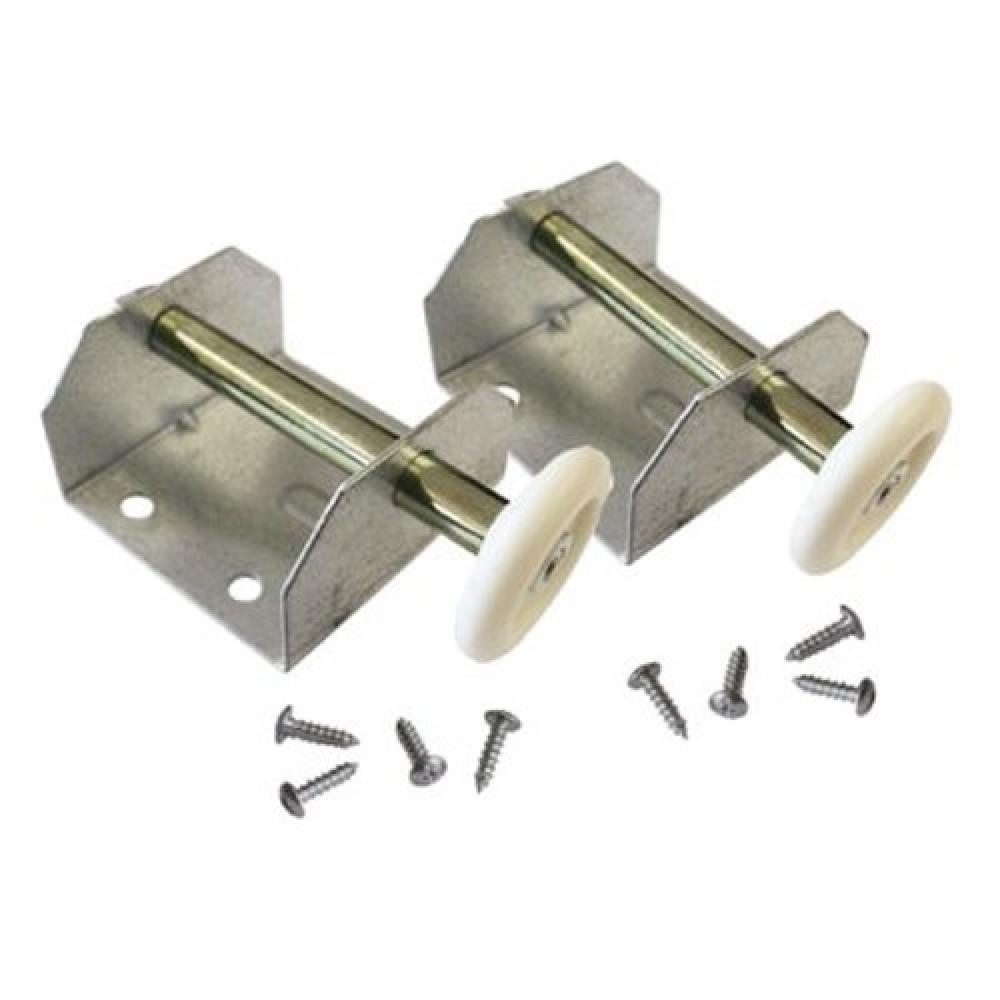

Cardale		Cardale Maximiser II Spindle & Bracket PAIR - Double Width Doors	119mm			43mm

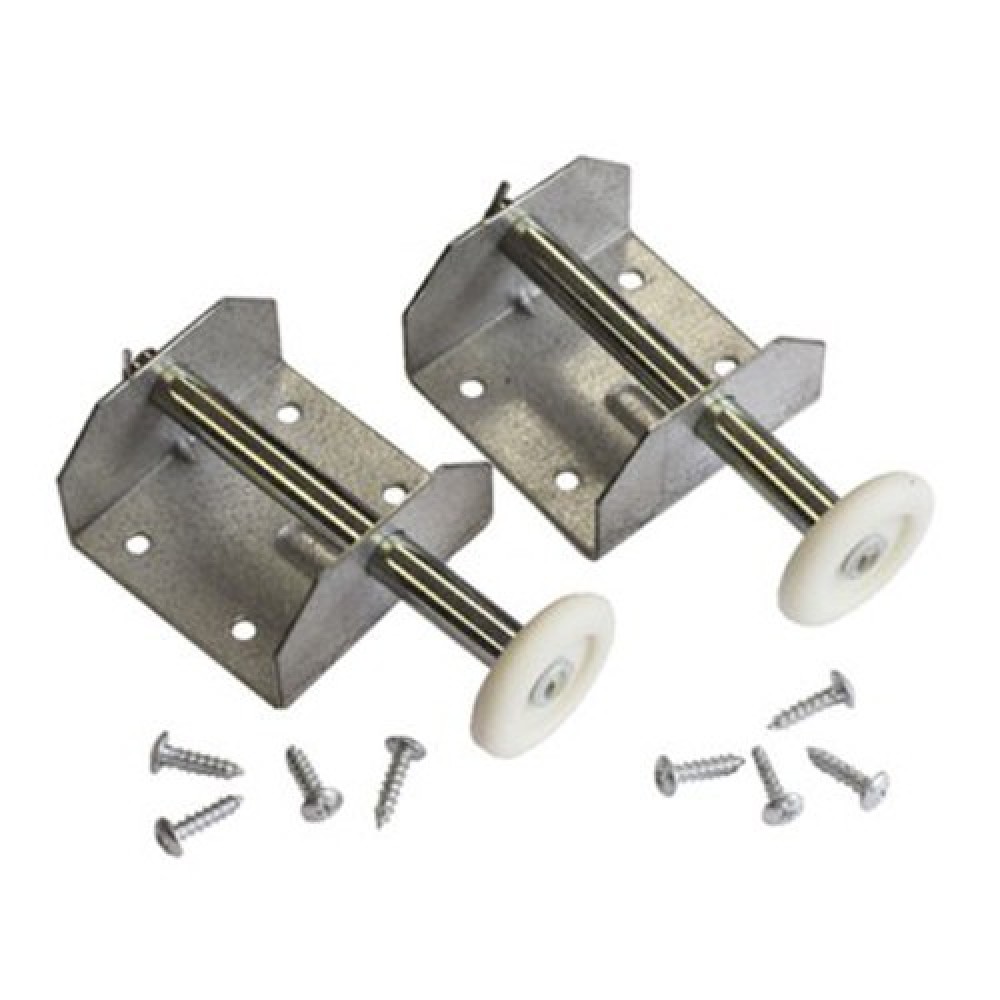

Cardale		Cardale Maximiser II Spindle & Bracket PAIR - Single Width Doors	119mm			43mm

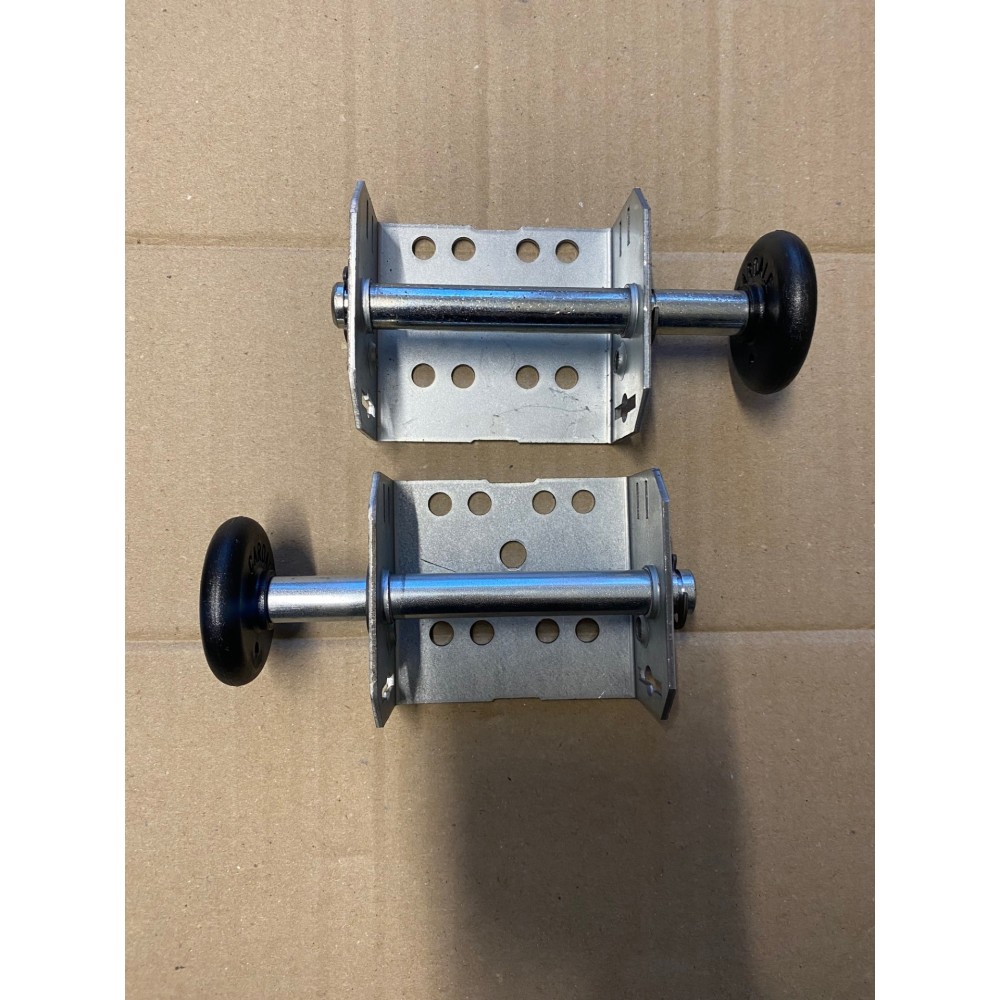

Cardale		Cardale Maximiser Pair of Roller Spindle Brackets	122mm	113mm		43mm

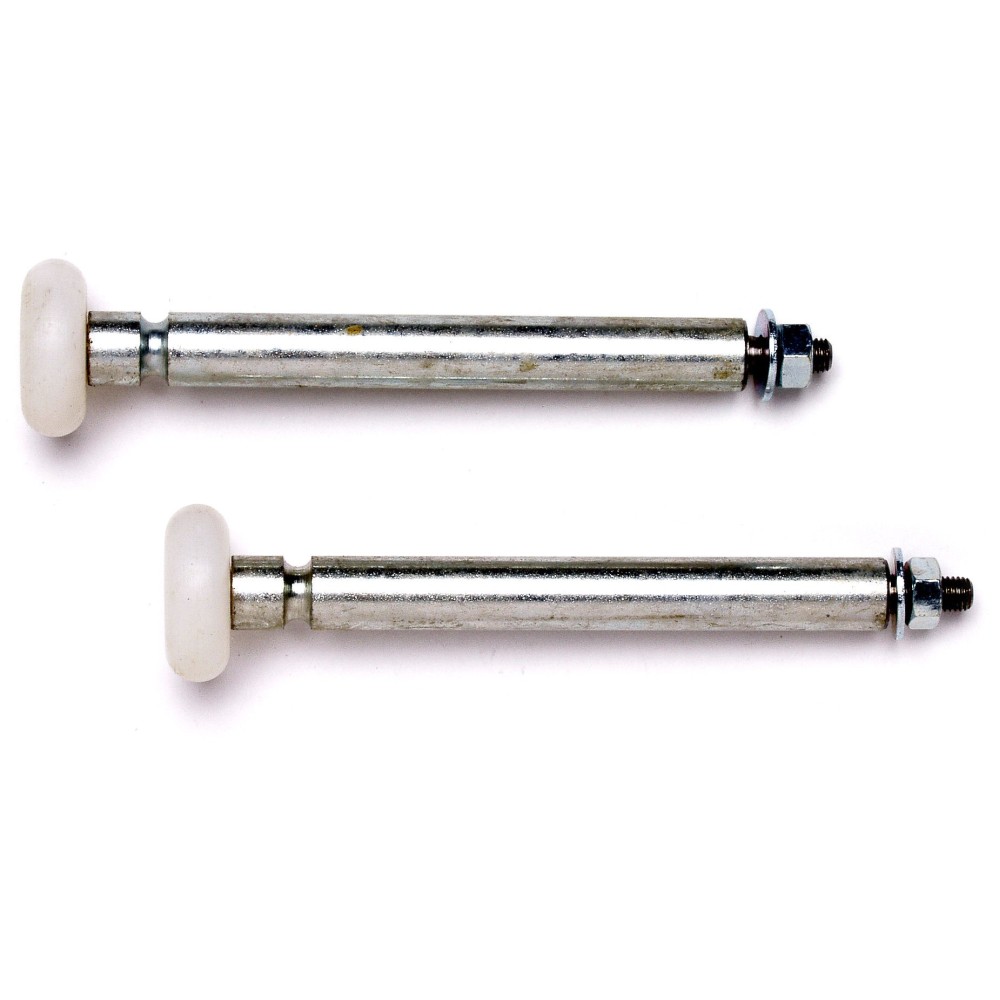

Cardale		Cardale Mk1 Twin Spring Drum Roller Spindles	136mm	127mm	12.7mm	30mm
Cardale		Cardale Mk2 & Mk3 Spring Drum 78mm Roller Spindles	78mm	67mm	12mm	21mm

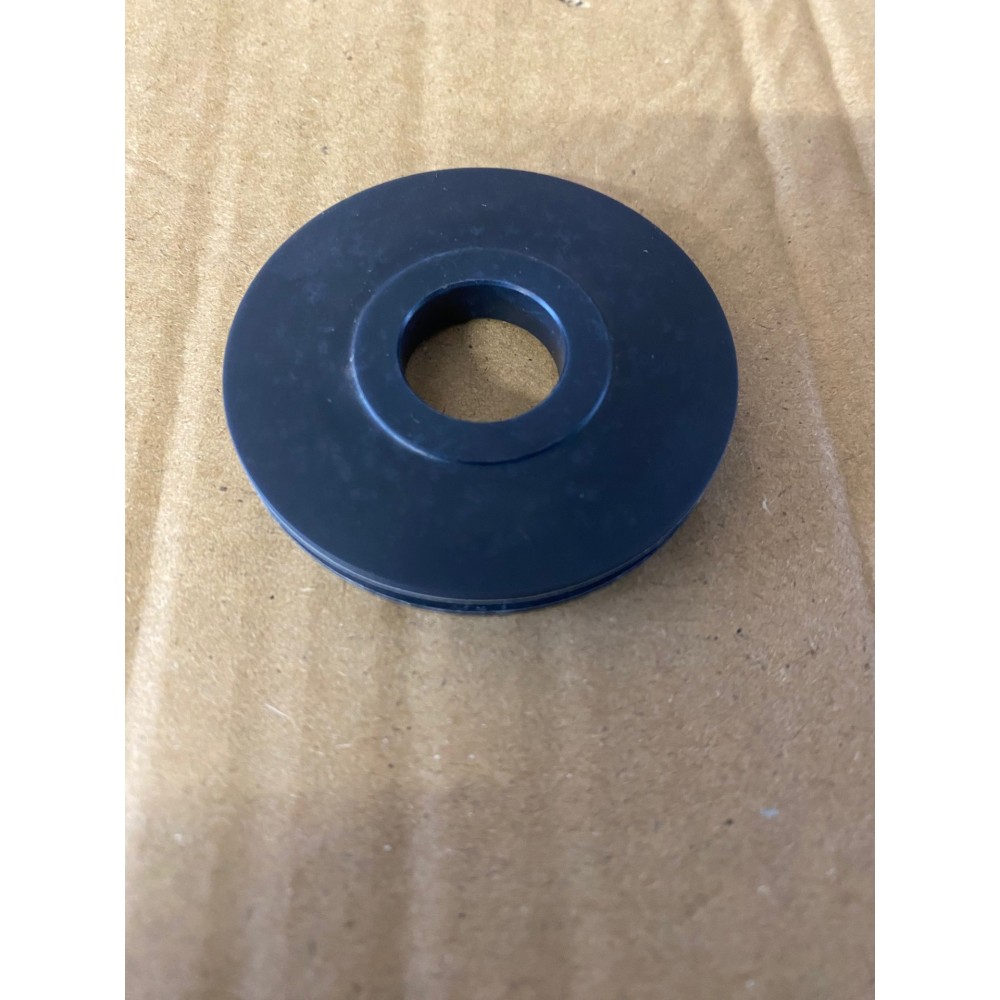

Cardale		Cardale Mk2 & Mk3 Spring Drum Top Bracket Roller	78mm	67mm	12mm	21mm
Cardale		Cardale Retractable Roller Spindles	135mm	119mm	12mm	44mm
Classic		Classic Canopy Door Roller Spindles	120mm	110mm	12mm	46mm
Garador		Garador C-Type Roller Spindles 94mm (Side springs)	94mm	75mm	12mm	21mm

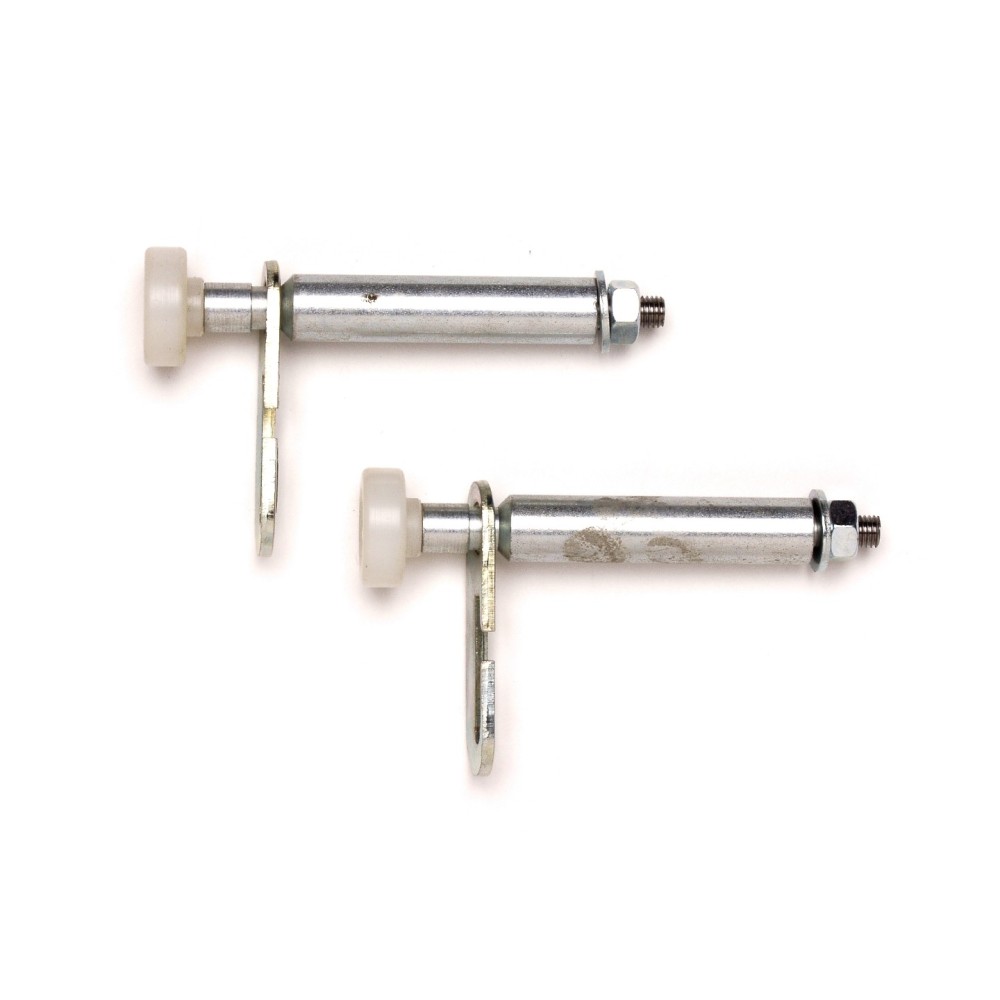

Garador		Garador F3C Roller Spindles 97mm	97mm	85mm	12mm	21mm

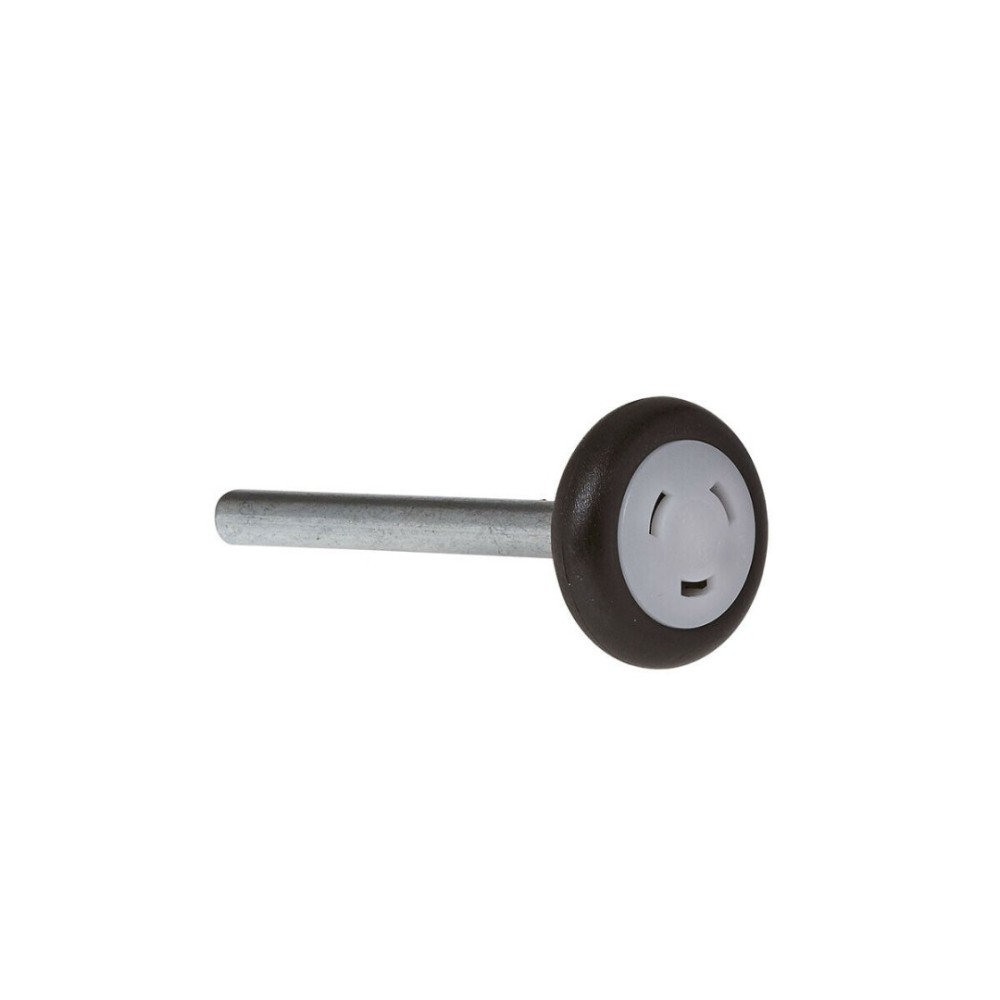

Garador		Garador Folding Sectional Bottom Roller Wheel 3047259 - 110mm	110mm			45mm

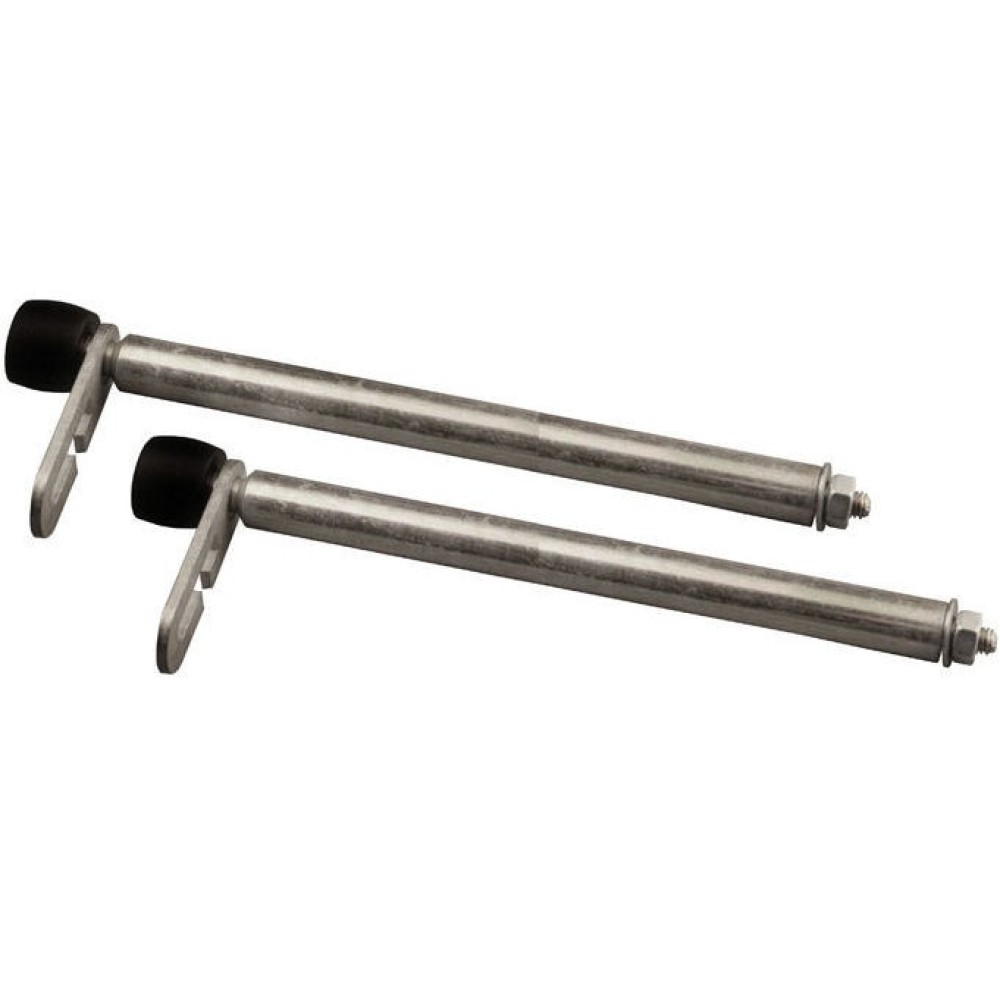

Garador		Garador Mk1 Mk2 & S/S Roller Spindles 210mm	210mm	178mm (Not including Thread)	12mm	21mm

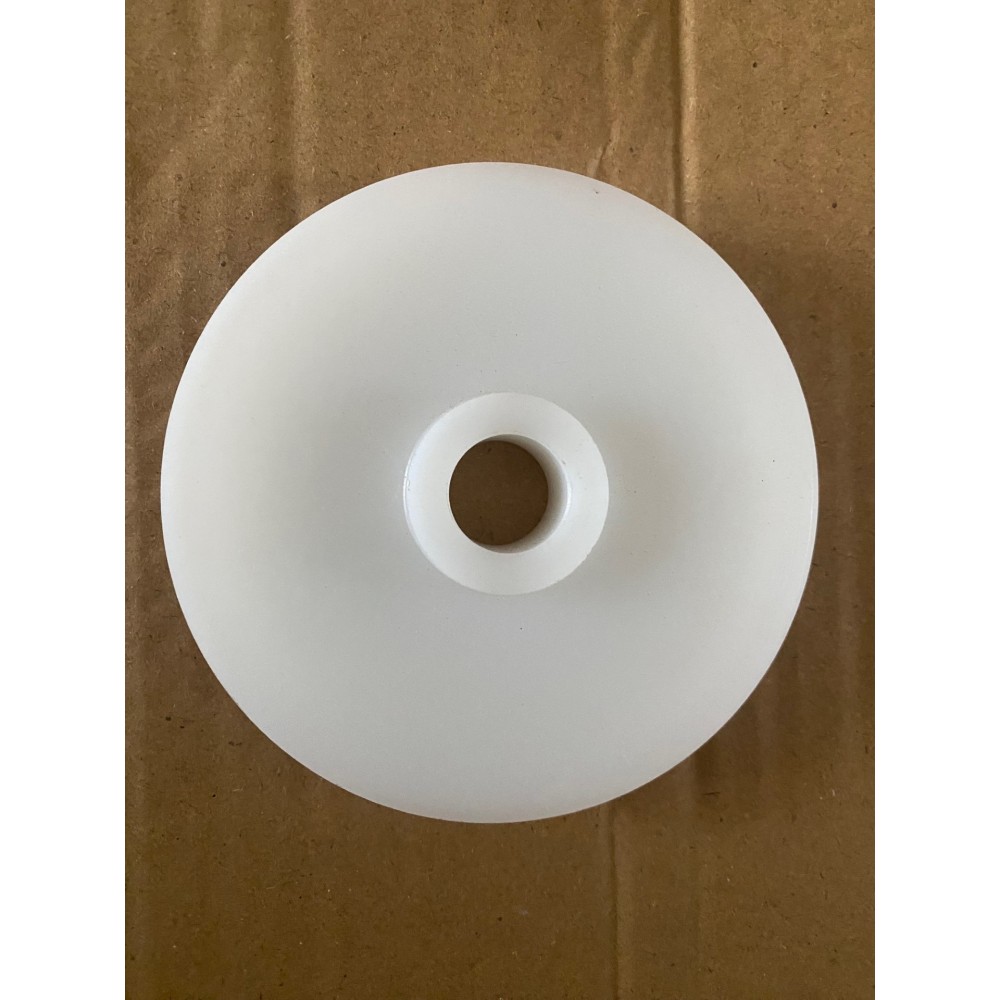

Garador		Garador Mk1 Mk2 & S/S Top Pulley Wheel	210mm	178mm (Not including Thread)	12mm	21mm
Garador		Garador Mk2 & S/S Roller Spindles 154mm	154mm	145mm	12mm	21mm

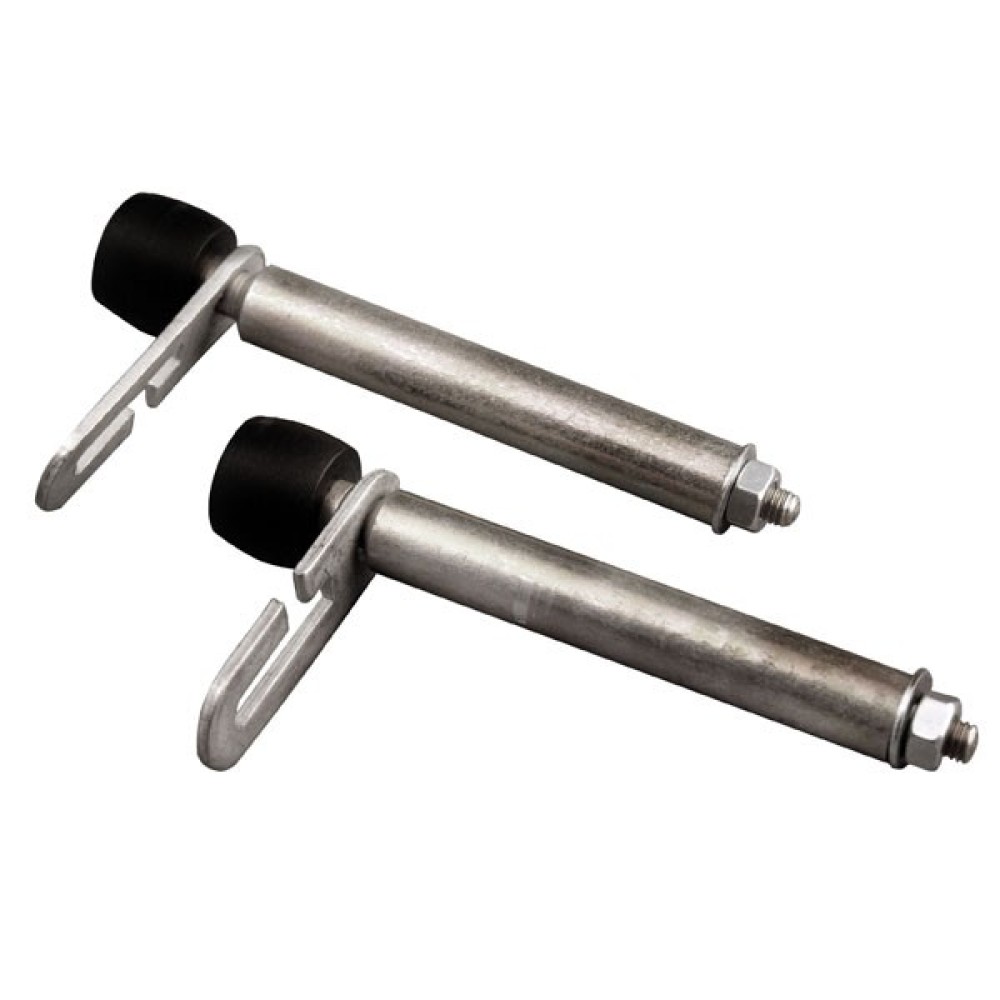

Garador		Garador Mk3c & S/S Roller Spindles 115mm (Earlier version)	115mm	100mm	12mm	21mm
Garador		Garador Mk3c C-Type Roller Spindles 85mm (Overhead spring)	85mm	69mm	12mm	21mm

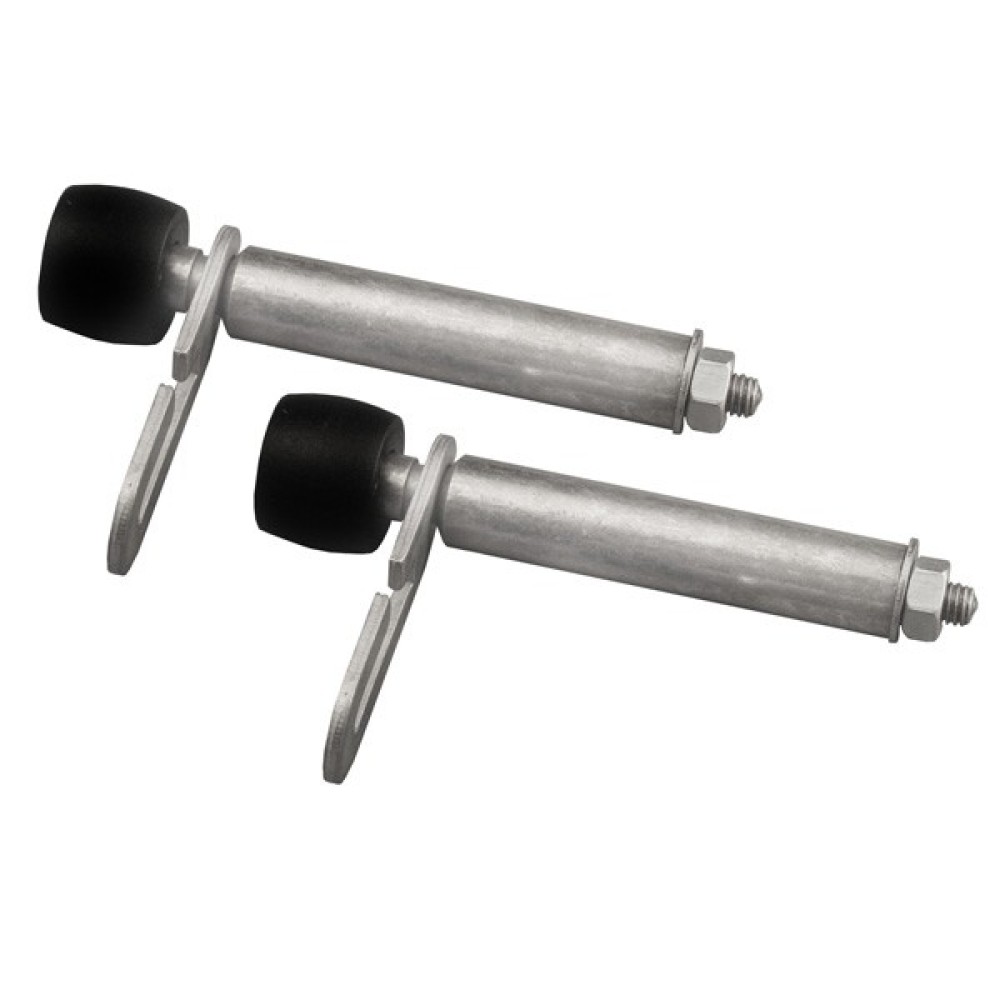

Garador		Garador Mk3c Roller Spindles 96mm (Later version)	96mm	80mm	12mm	21mm
Garador		Garador Mk4 / F type Roller Bolt On Spindles - Old Type	90mm
Garador		Garador Mk4 / F type Roller Spindles 90mm	90mm
Garador		Garador Retractable Roller Spindles (12.7mm)	120mm	101mm	12.7mm	46mm

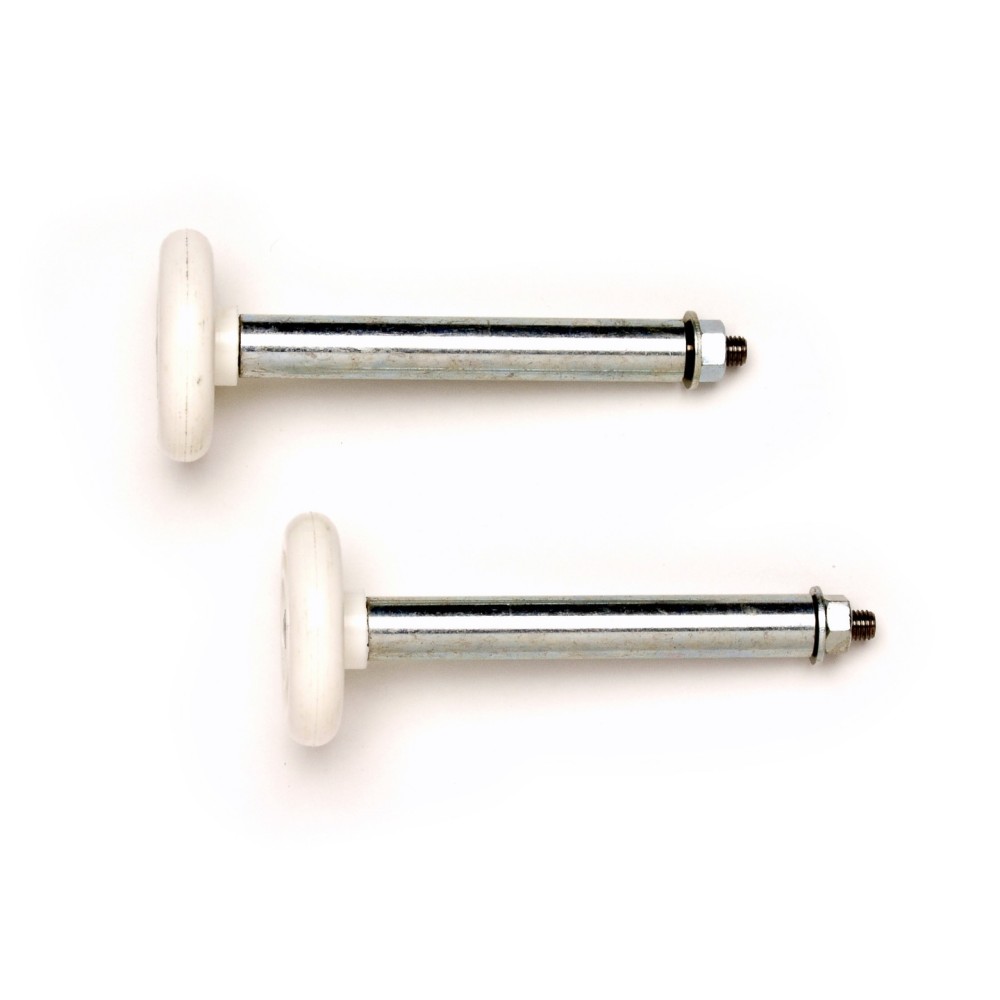

Garador		Garador Retractable Roller Spindles (16mm)	120mm	101mm	16mm	46mm
Haskins		Haskins / Golmet Top Roller - PAIR	24mm	24mm	8mm	45mm

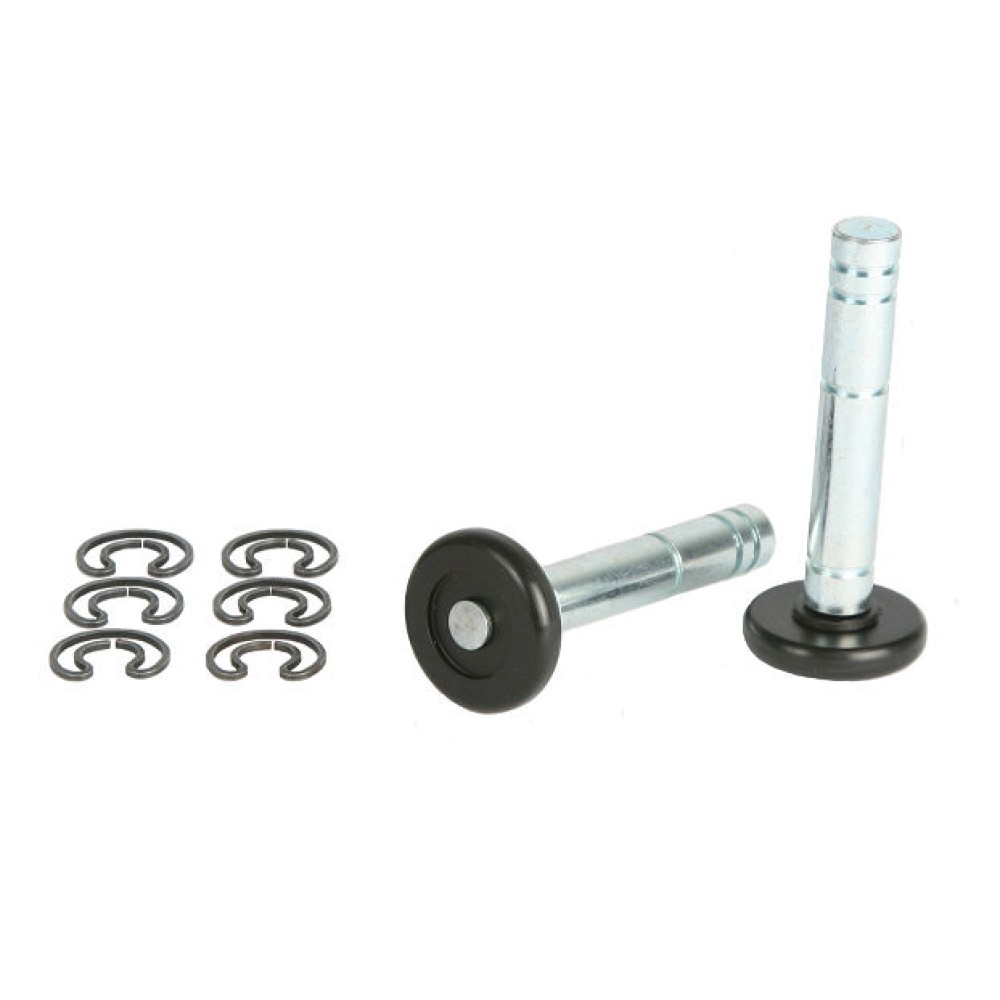

Henderson		Henderson Anti Drop Roller Spindles	89mm	74mm		34mm

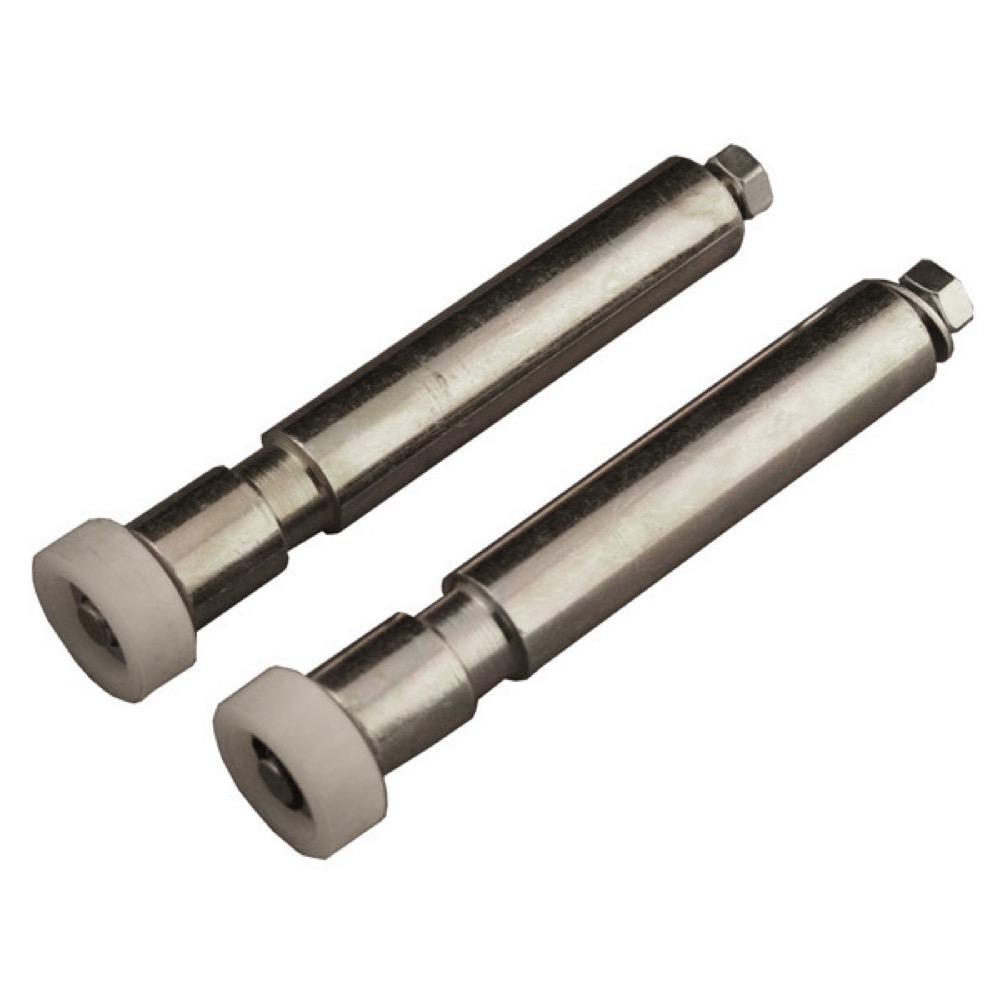

Henderson		Henderson DOUBLE DOOR Merlin Roller Spindles 16mm - Nut	116mm		16mm	22mm

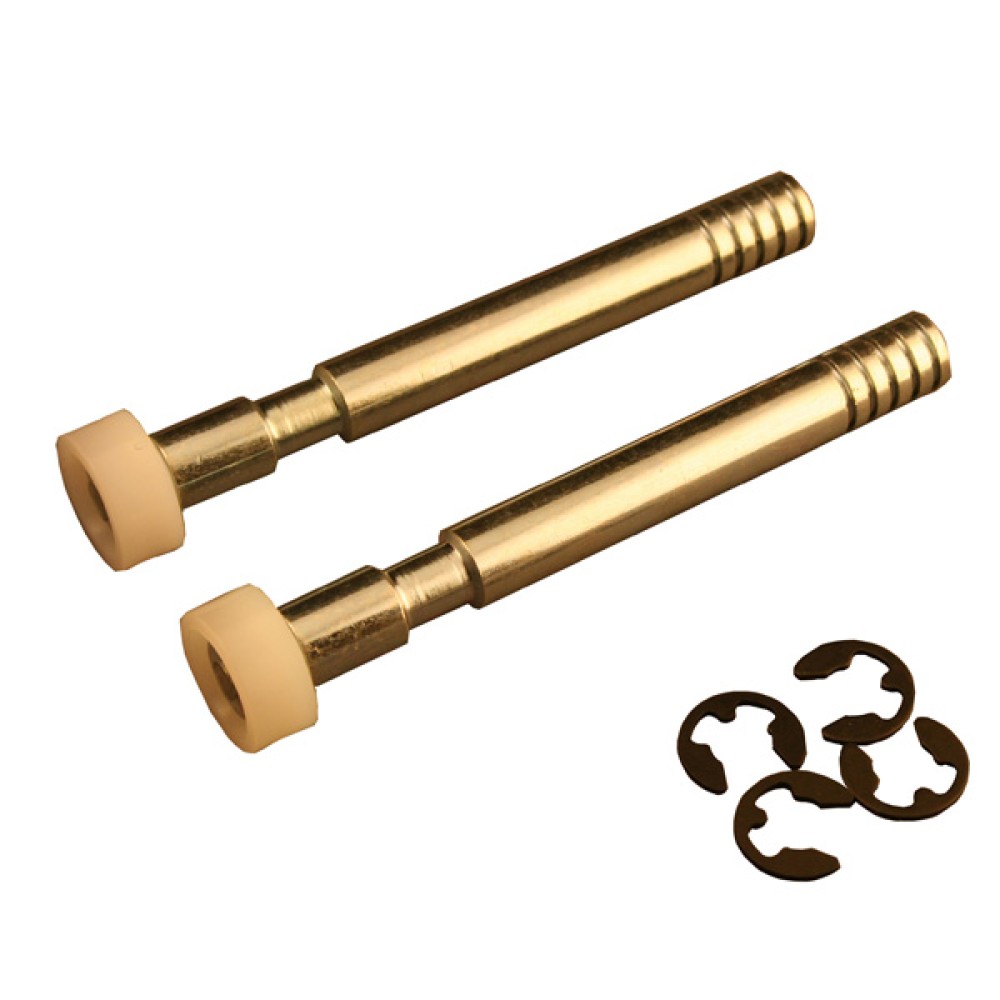

Henderson		Henderson Pre-Premier Roller Spindles - Cir-Clip		114mm	12mm	22mm
Henderson		Henderson Pre-Premier Roller Spindles 12mm - Nut	117mm		12mm	22mm
Henderson		Henderson Premier Roller Spindles	84mm	70mm	12.7mm	33mm
Henderson		Henderson Retractable & Ultra Gear Roller Spindles	120mm	110mm	12mm	46mm
Hormann		Hormann Folding Sectional Bottom Roller Wheel 3040311 - 50mm	50mm			45mm
Hormann		Hormann Folding Sectional Bottom Roller Wheel 3047259 - 110mm	110mm			45mm
Hormann		Hormann Folding Sectional Side Roller Wheel 3039956 - 45mm	45mm			45mm

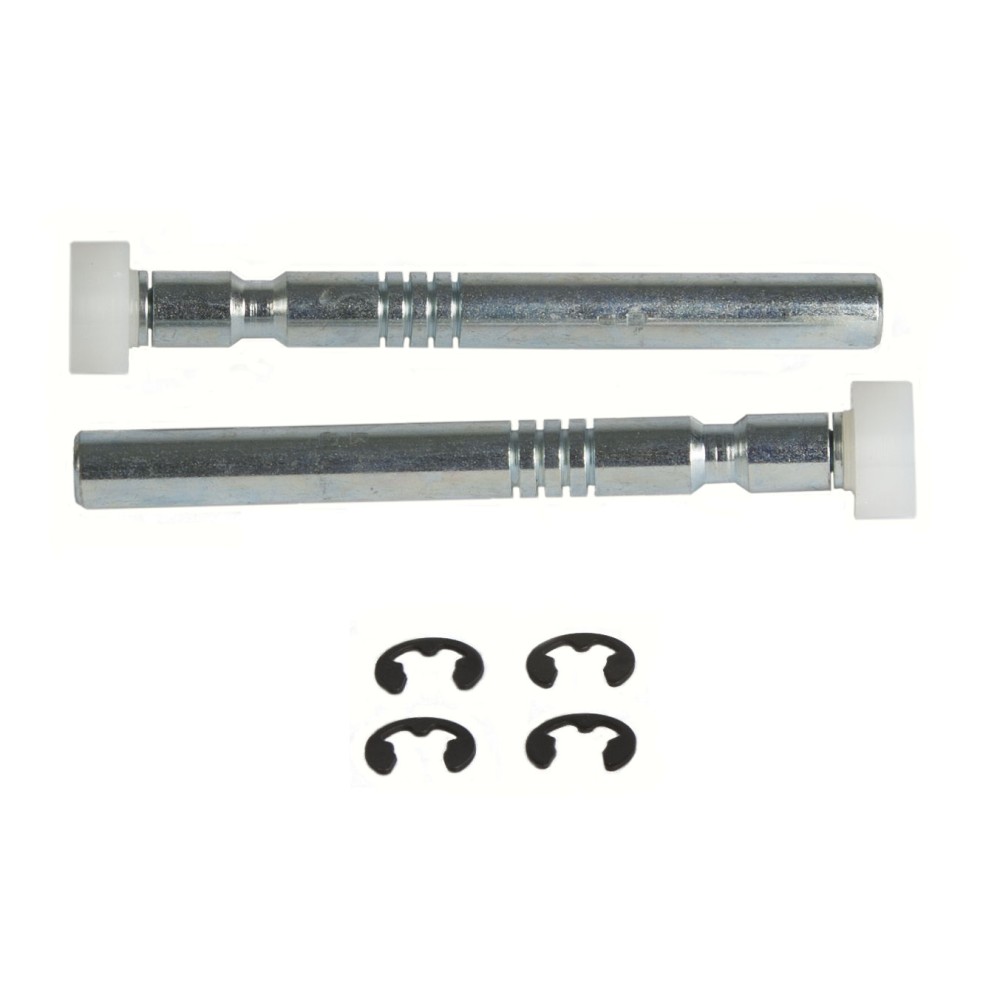

King		King Roller Spindles	135mm	125mm	12mm	22mm
Marley		Marley Canopy Roller Spindles	105mm	88mm	12mm	22mm
Marley		Marley Retractable Roller Spindles	125mm	112mm	13mm	46mm
Novoferm		Novoferm Pair of Roller Spindle Brackets	122mm	113mm		43mm
Select		Select Canopy Door Roller Spindles	120mm	110mm	12mm	46mm
Wessex / Ellard		Wessex / Ellard Canopy Roller Spindles	125mm	112mm	12.7mm	46mm
Wessex / Ellard		Wessex / Ellard Retractable Roller Spindles	125mm	112mm	12.7mm	46mm
Wessex / Ellard		Wessex CD45 GRP / FIBREGLASS Roller Spindles 168mm	168mm	150mm	12mm	22mm
Wickes / B&Q		Wickes / B&Q Anti-Drop Safelift Roller Spindles FIBREGLASS / GRP 163mm	163mm
Wickes / B&Q		Wickes / B&Q CD Professional Anti-Drop Safelift Roller Spindles 153mm	153mm
Wickes / B&Q		Wickes / B&Q CD45 GRP / FIBREGLASS Roller Spindles 168mm	168mm	150mm	12mm	22mm
Wickes / B&Q		Wickes / B&Q CD45 Roller Spindles 160mm	160mm	150mm	12mm	22mm
