Name: Hormann ORIGINAL Retractable Garage Door Springs - SINGLE WIDTH DOOR
Brand: Hormann
Price: 56.95 GBP
Availability: InStock

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Post Code:

Estimate

Click the button below to view the Spring Chart to help you find the correct spring.

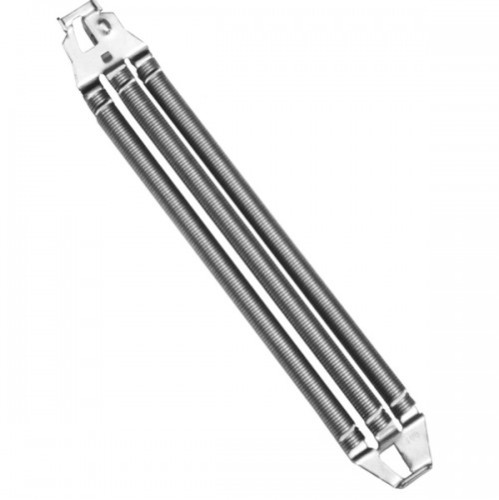

Hormann ORIGINAL Retractable Garage Door Springs - SINGLE WIDTH DOOR

When replacing garage springs, it is recommended to replace both sides at the same time, to ensure the spring tension and door remain balanced.
Hormann spring block assembly to suit Retractable & Retractable Plus single width garage doors (manufactured after 2002) which have a block of 3 springs either side of the door.
This item is sold as one single spring assembly which consists of 3 springs and top and bottom brackets. They are NOT handed.

There are 4 variations, please identify by using our spring chart. Check out your existing springs for the number which will be stamped on the end of the original bracket;

Spring 001: (current part no: 52)
Spring 002: (current part no: 53)
Spring 003: (current part no: 54)
Spring 004: (current part no: 1226)

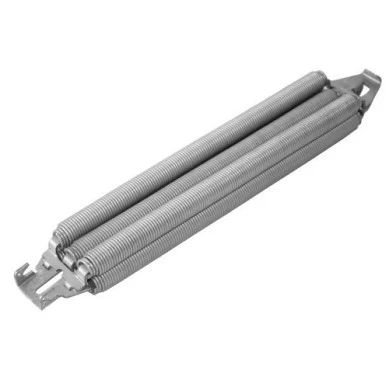

Please note, some of the double-width doors have a code of 001, 002 or 003. In effect, on these doors, they use 2 single-width clusters per side to make 6 springs.
Wire Diameter 1.5mm
Number of Coils 130
Overall Diameter 14mm
Length Excluding Hooks 330mm
Please note, the 004 springs are longer - approx 445mm long across the coils
If you need any help identifying your door or spring required, please give us a call
