Garador ORIGINAL Retractable Garage Door Springs (DOUBLE WIDTH DOOR)

When replacing garage springs, it is recommended to replace both sides at the same time, to ensure the spring tension and door remain balanced.
Garador spring block assembly to suit Retractable & Retractable Plus double width garage doors (manufactured after 2004) which have a block of 6 springs either side of the door.
This item is sold as one single spring assembly which consists of 6 springs and top and bottom brackets. They are NOT handed.

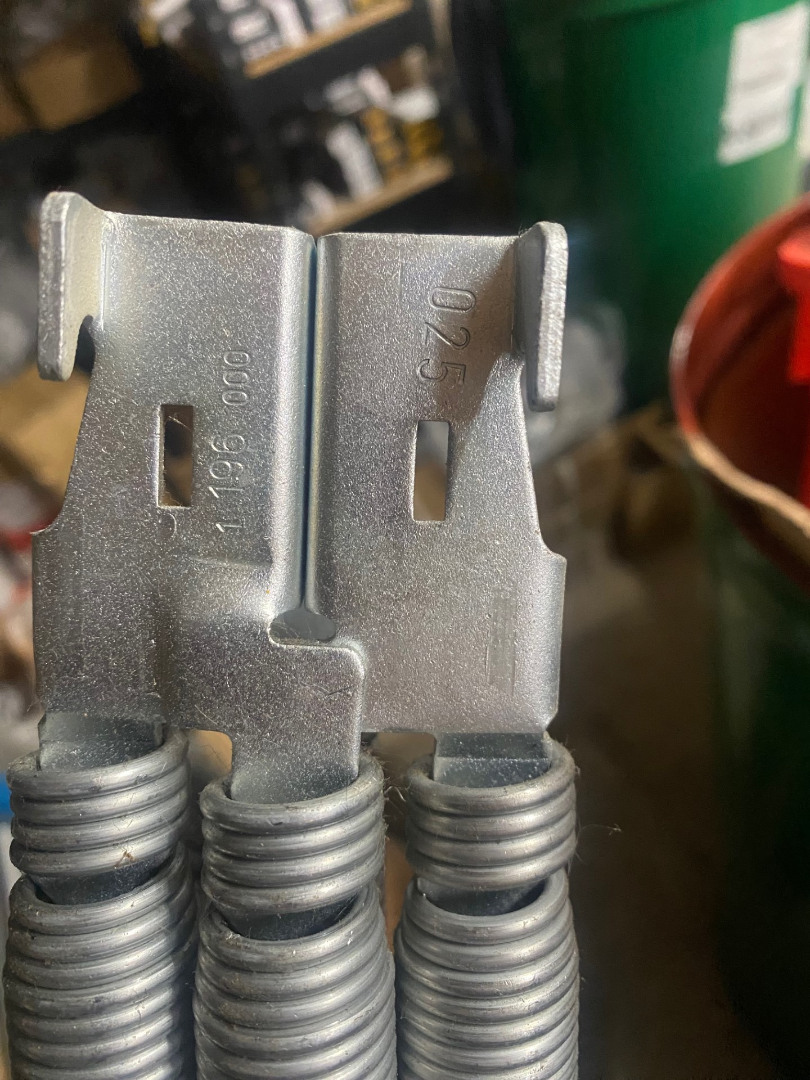

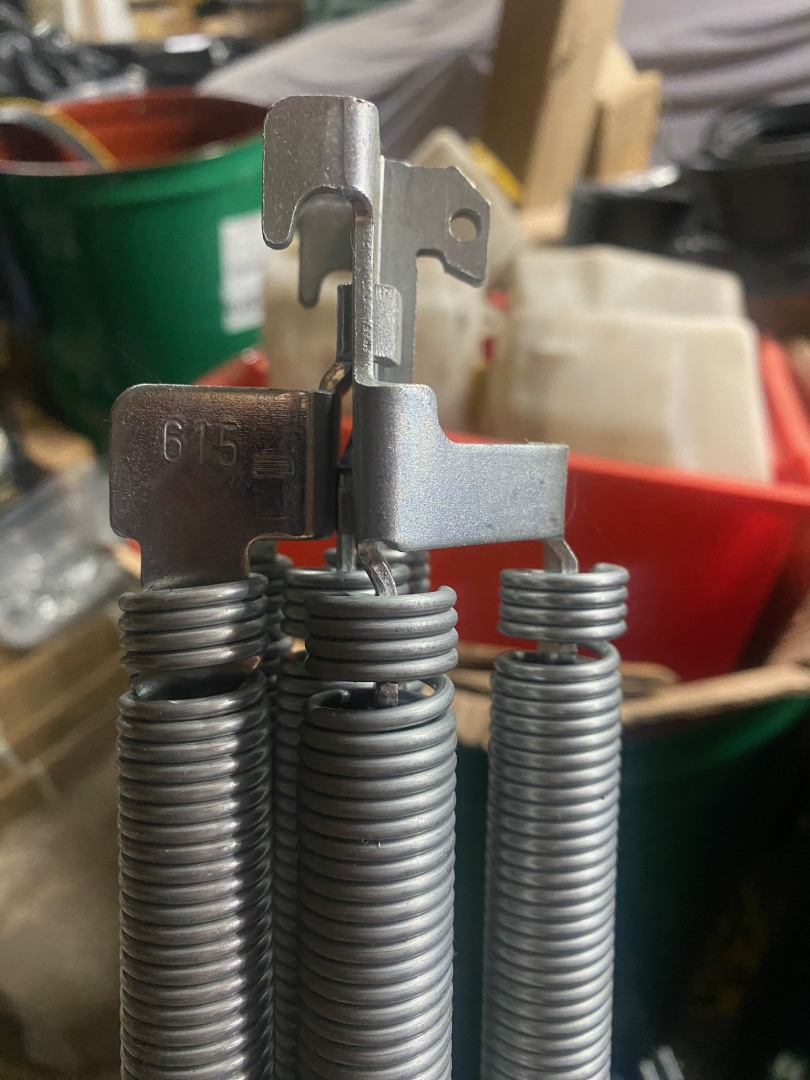

There are 6 variations, please identify by using our spring chart. Check out your existing springs for the number which will be stamped on the end of the original bracket (see our images for some examples of where this code can appear);

Spring 4er 025: (current part no: 1946)
Spring 4er 032: (current part no: 1945)
Spring 023: (current part no: 4346)
Spring 615: (current part no: 1943)
Spring 621: (current part no: 1944)
Spring 015: (current part no: 4343)

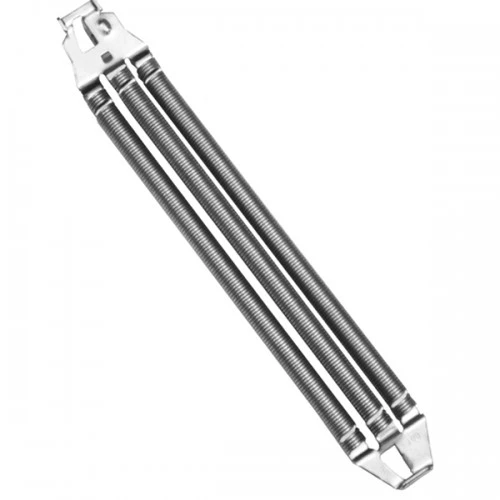

Please note, some of the double-width doors have a code of 001, 002 or 003. If yours have this code, you will need to click the related products area below for the 'Single-width door' variant. In effect, on these doors, they use 2 single-width clusters per side to make 6 springs.
Wire Diameter 1.5mm
Number of Coils 130
Overall Diameter 14mm
Length Excluding Hooks 330mm
If you need any help identifying your door or spring required, please give us a call

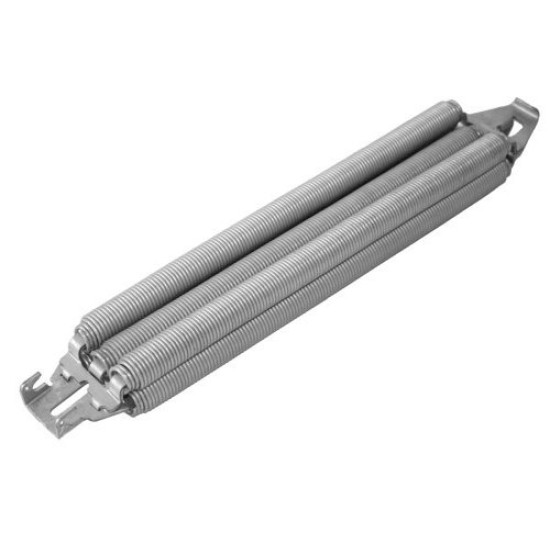

PLEASE NOTE, THE MAIN IMAGE SHOWS A SPRING CLUSTER OF 6 SPRINGS. SOME OF THESE SPRINGS HAVE A CLUSTER OF 4 OR 5 SPRINGS - THE IMPORTANT PART IS THAT YOU ORDER THE SAME CODE AS YOU CURRENTLY HAVE IN ORDER TO GET THE SAME CLUSTER AND QUANTITY OF SPRINGS
