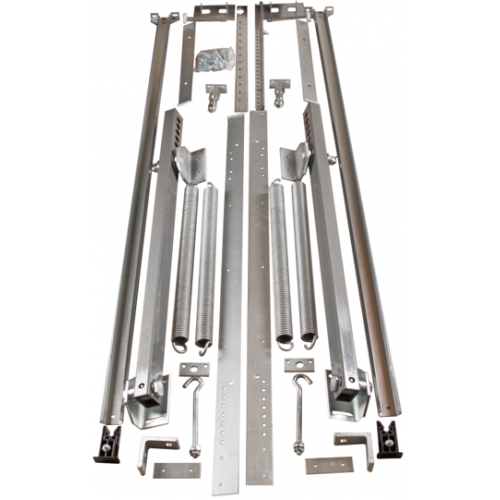

Retractable Garage Door Lifting Gear - Heavy Duty

Description

Retractable garage door gear kits are ideal for doors with obsolete parts or for people making their own garage door panels.
Retractable gear is also ideal if you would like to motorise your garage door.
Please see our related products area below for the metal plates which are ideal to attach the lift arms to the door
We recommend an experienced garage door repairer / installer carries out this work, although many confident DIY people should be able to undertake this work.
All gears have multi position springs location to give great flexibility and improved door balance.
This lifting gear will work with Steel, Timber & GRP garage doors
The gear packs are suitable for metal, GRP and timber garage doors. Maximum obstruction in front of garage is 1140mm (3ft 9ins) on a 2134mm (7ft) high door. The door will retract fully upon opening, sliding back fully on the horizontal tracks.
AP350 Gear pack to lift 114 - 159kg (350lbs)
AP500 Gear pack to lift 160 - 227kg (500lbs)
Short Arm Door height: 6ft to 6ft8ins
Standard Arm Door height: 6ft 8ins to 7ft 5ins
High Arm Door height: 7ft 5ins to 9ft
