NVM Frequency Roller Shutter Remote Control Unit & 2 Handsets - Built in Wifi

Description

High Quality NVM Frequency Remote Control System complete with 2 x Handsets with sliding covers to protect the buttons
Suitable for roller shutter doors which have a 230V tubular motor fitted.
This receiver kit has a built in Wifi module and also bluetooth capability. So you are able to control it using 3 methods;
Standard radio frequency via the 2 supplied remote control handstes
Wifi control via connection to TUYA app (control box must be in range of Wifi signal) - easily set up via the enclosed manual or by scanning the barcode on the inside of the control box cover
Bluetooth - within 15 metres (no wifi signal needed)
The receiver Resistance function has three modes:
When the infrared photoelectric switch signal line is connected to the ”S”port, the receiver is in Resistance stop mode
When the photoelectric switch signal line is connected to the "IR", there are two modes: rebound to the top mode ; rebound half circle mode. It can be switched by the remote.
The receiver can monitor the running current of the motor. When the motor stops running (the door stops at any position), it will automatically cut off the photoelectric switch without misoperation
With inching function

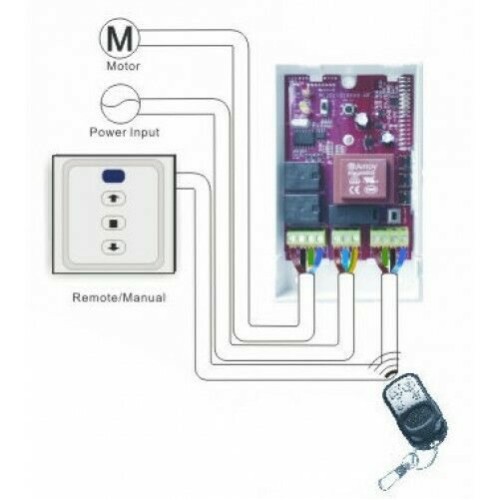

It has DC power supply (DC12V) output and uplink, stop, downlink dry contact interface, which can be connected with manual switch and various external sensors
Has the teminals to accept a photocell.
The Remote controls have independent Open, Close & Stop Buttons.
Plug in terminals, receiver accepts upto 20 fobs - extra fobs available in our related products area below
Suitable for motors with a loading capacity upto 1000w
Deadman function (hold to run on key fob) selected via DIP switch
Low voltage manual switch function
Motor directional change function
Push button directional change function
Industry standard CPU
ABS ultraviolet-resisting plastic housing
External Key Switch selections
Specifications;
1.Input voltage: AC100-240V 50 HZ/60 HZ
2.Receiving frequency: 433.92 MHZ,2.4G
3.Receiving sensitivity:≤107dB
4.Output power: ≤800W
5.Working temperature: –40°C~+70°C
6. APP：Tuyasmart
If you require this unit, but with a pre-wired plug and cable, or a control unit that also operates a door with a photocell, please see our other products
Comes complete with full instructions
