Name: Marantec Digital 343 Retrofit Frequency Radio Receiver Upgrade Kit
Brand: Marantec
Price: 137.95 GBP
Availability: InStock

Marantec Digital 343 Retrofit Frequency Radio Receiver Upgrade Kit

Saturday /Sunday Delivery Available

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Calculate Shipping Cost

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Post Code:

Estimate

Marantec Digital 343 Retrofit Frequency Radio Receiver Upgrade Kit

Description

1 x Digital 343-Retrofit Frequency Radio Receiver Upgrade Kit
Kit includes 1 x Receiver unit, 1 x Handset & handset holder & visor clip
This kit is suitable for the older Marantec units and the receiver unit attaches to the motor head by way of cable lead, like a phone socket
Radio frequency: 868MHz
Marantec Part No: 78074
A receiver and transmitter kit for upgrading older Marantec 27MHz and 418MHz systems. For which handsets and receivers are in most cases obsolete, to the latest 868 MHz frequency.
PLEASE NOTE: Any existing working handsets. operating on either 27 MHz or 418 MHz that you still have will not work with this upgrade kit and replacement 868 handsets, like the D382-868 ones in our related producrs area will have to be purchased
Battery & programming instructions included with this item
If you require extra handsets, please see the Digital D382-868 in our related products area below

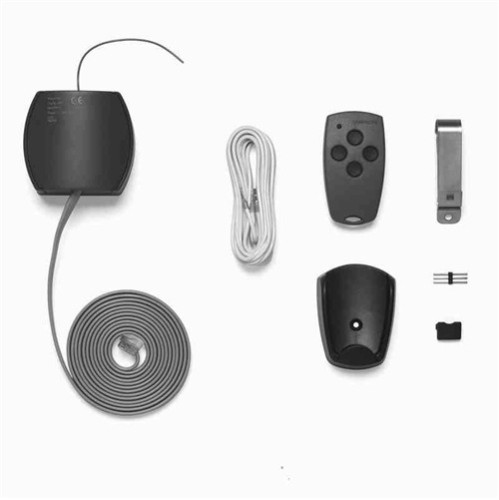

Package contents:
- Digital 343 universal receiver. 2-channel
- Pre-cabled with system cable (2.100 mm)
- Digital 304 Mini hand transmitter. 4-channel
- 3 V button cell. CR 2032
- Coding plug
- Wall support
- Visor Clip
Function/application
- Potential-free impulse/switch function
- For retrofitting the frequency without plug
- For all Marantec operator systems
Technical details/specifications
- Measurements (WxHxD): 70 x 63 x 34 mm
- Nominal voltage: DC or AC 12 – 24 V
- Power consumption: Approx. 50 mA
- Protection category: IP 20
- Range of temperature: -20ºC to + 60ºC
- Cabling: System cabling
