Marley Red Tip Garage Door Spring

For all technical questions, please drop us an email with any applicable images and we will get back to you.
Marley Red Tip Garage Door Spring

Saturday /Sunday Delivery Available

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Calculate Shipping Cost

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Post Code:
For all technical questions, please drop us an email with any applicable images and we will get back to you.

Spring Finder

Click the button below to view the Spring Chart to help you find the correct spring.

SPRING FINDER

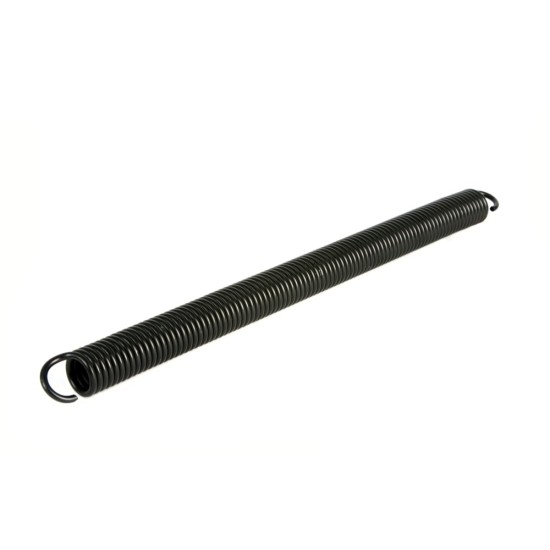

Marley Red Tip Garage Door Spring
  • When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.

  • Marley Red Tip Spring used on both MG and Auto Doors Marley garage doors. The original Marley part number is SM115

  • Wire Diameter 6.6mm

  • Number of Coils 92

  • Overall Diameter 43mm

  • Length Excluding Hooks 584mm
Spring Specification
Door WidthDouble
Spring Diameter43mm
Spring Wire Diameter6.5mm
No. of Coils92
Spring Length584mm
  • Stock: In Stock
  • Brand: Marley
  • Model: Marley Red Tip Spring
£48.00
Ex Tax: £40.00

Available Options

Tags: spring , chart , marley
