Name: Hormann Roller Shutter Door Top Connection Profile
Brand: Hormann
Price: 34.96 GBP
Availability: InStock

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Post Code:

Estimate

For all technical questions, please drop us an email with any applicable images and we will get back to you.

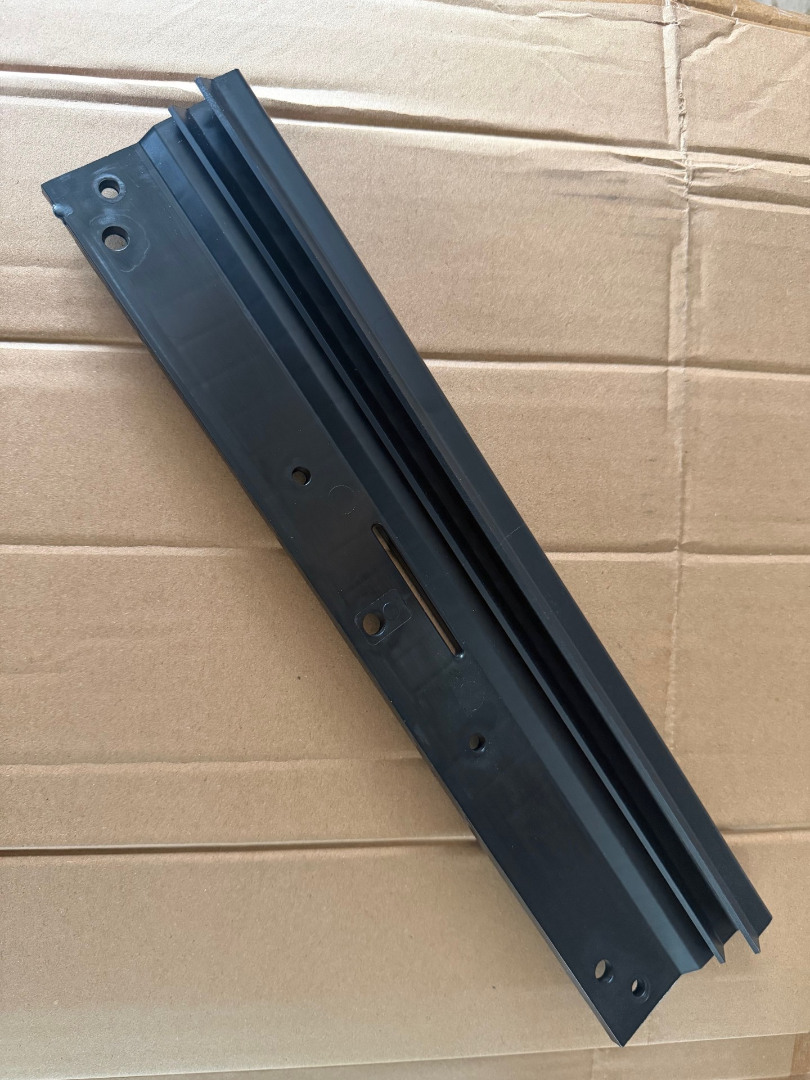

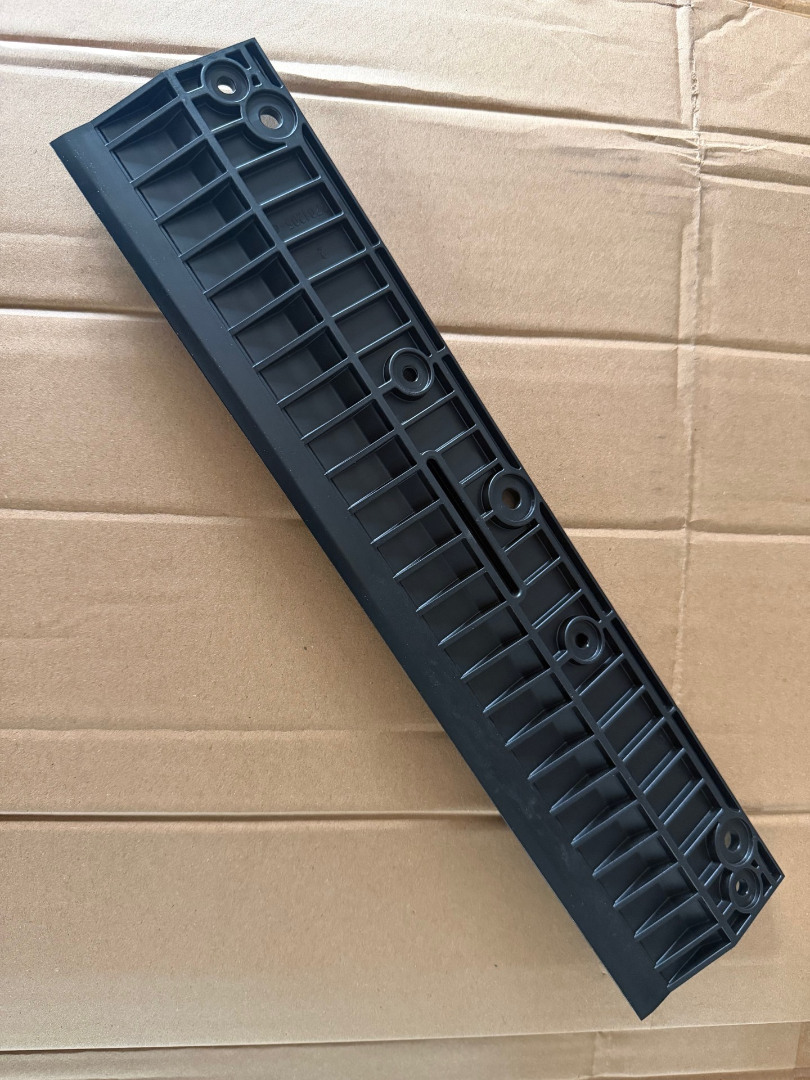

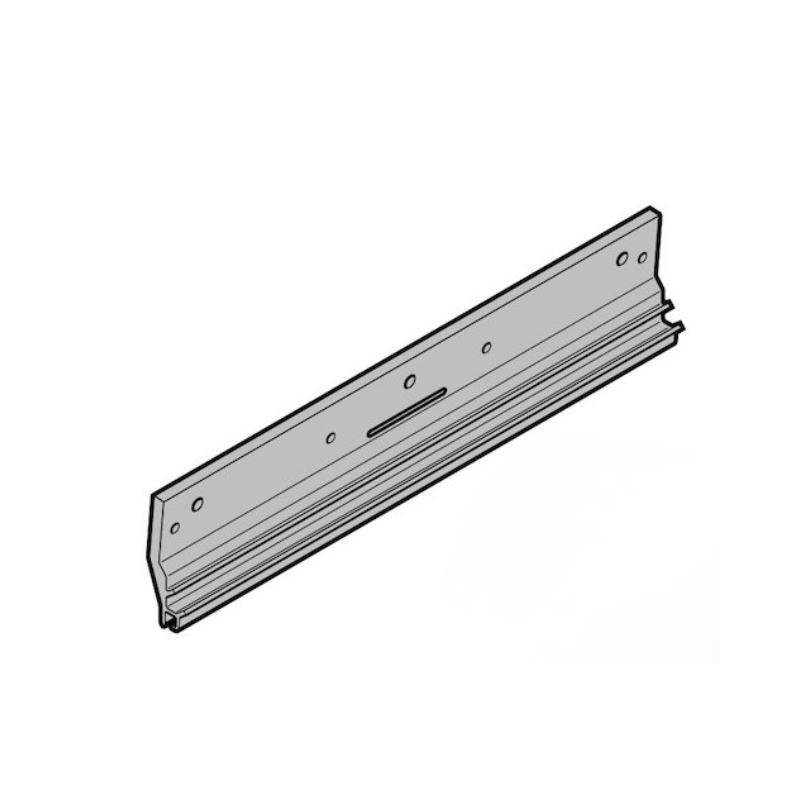

Hormann Roller Shutter Door Top Connection Profile

1 x Genuine Hormann Top Connection Profile for Rollmatic and Rollmatic T Roller garage doors.
Fits on the top of the door curtain and attaches to the drum.

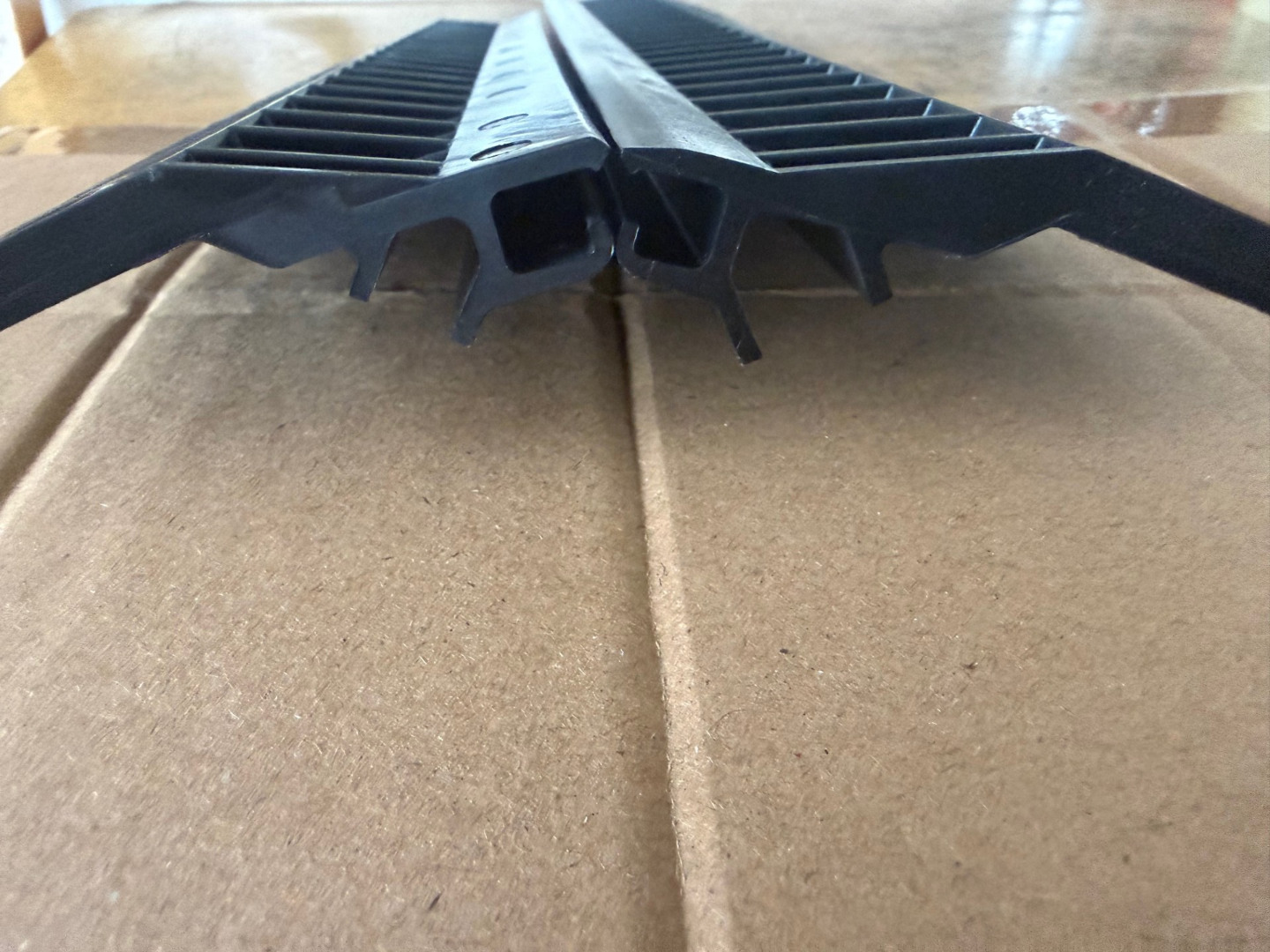

Made from plastic, there are 2 versions, to fit a 70mm and 80mm Octagonal Drum (please select which version you need from the drop-down box below). The profile is also larger on the 80mm version - see images,
Sizes are;
70mm Drum Version;
322mm x 68mm x 15mm

80mm Drum Version;
352mm x 79mm x 19mm
The Rollmatic door uses the SW80 version
Generally 2/3 are fitted on the 70mm drum version and 3-6 on the 80mm drum version (depending on width of door)
Codes on brackets are 8991833 (SW70) & 8991322 (SW80)
Fitted to doors 2002 - current
