Name: Hormann Lock Mechanism Body & Cylinder
Brand: Hormann
Price: 43.96 GBP
Availability: InStock

Saturday /Sunday Delivery Available

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Calculate Shipping Cost

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Post Code:

Estimate

Hormann Lock Mechanism Body & Cylinder

Description

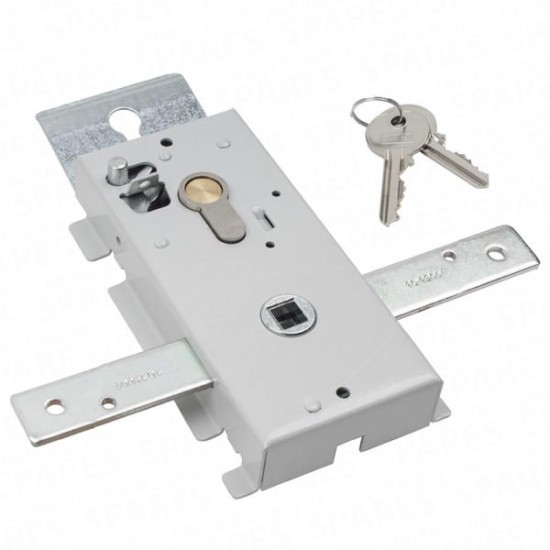

Hormann Lock Body Mechanism complete with cylinder (select size required from options below using the drop-down box)
Fitted to Hormann garage doors from 2002 onwards

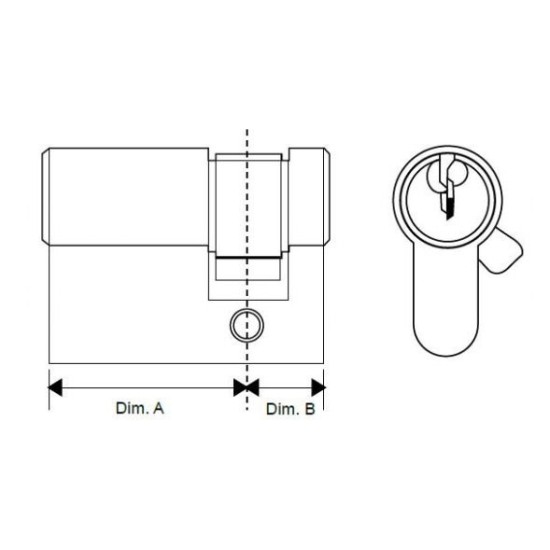

There are 5 options available. You can either measure your existing lock barrel, or check the arms on your existing lock mechanism for one of the following codes;

Hormann lock no. 1019001 - (Garador Part No. 204)
Current part no: 204. Suitable for Carlton, Horizon, Salisbury, Chevron & double steel doors. (Cylinder length: 30.5 + 10)

Hormann lock no. 1019102 - (Garador Part No. 202)
Current part no: 202. Suitable for all Georgian, Beaumont, Cathedral, Vertical Cedar and Cavendish doors. (Cylinder length: 35 + 10)

Hormann lock no. 1019103 - (Garador Part No. 203)
Current part no: 203. Suitable for Tudor, Seymour, Wolsey, Shaftsbury and single GRP doors. (Cylinder length: 40 + 10)

Hormann lock no. 1019104 - (Garador Part No. 1796)
Current part no: 2078. Suitable for Sandhurst, Chevron Cedar, Kingsbury, Barrington, Bosworth and double GRP doors. (Cylinder length: 55.5 + 10)

Hormann lock no. 1019105 - (Garador Part No. 2078)
Current part no: 1796. Suitable for all GRP and timber doors. (Cylinder length: 50.5 + 10)

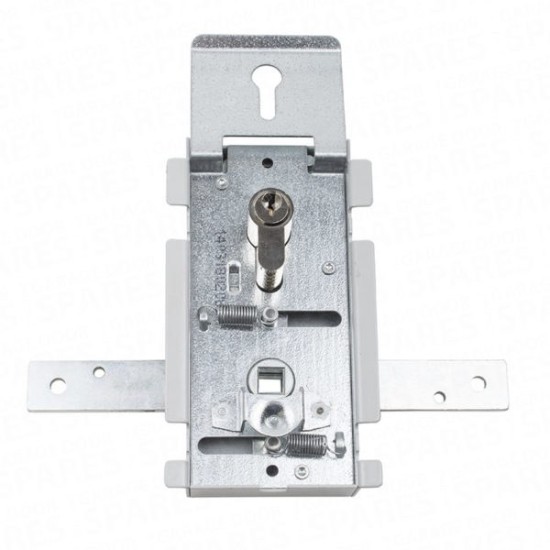

The older lock mechanisms with a code of 1819001 are no longer available - you have to replace with a 1019001 and swap the backplate of the lock mechanism over as it has changed slightly. Please note the 1019001 has the metal plate with the keyhole shape hole in it, the other 4 lock mechanisms; 1019102, 103, 104 & 105 do not have this metal plate.
Please see our other products for many other Hormann garage door spares
