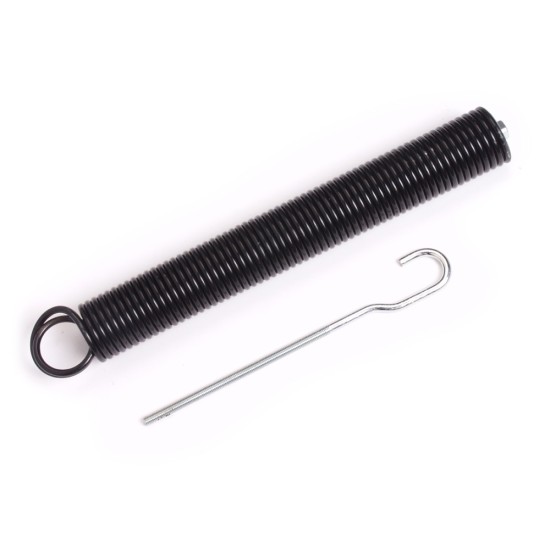

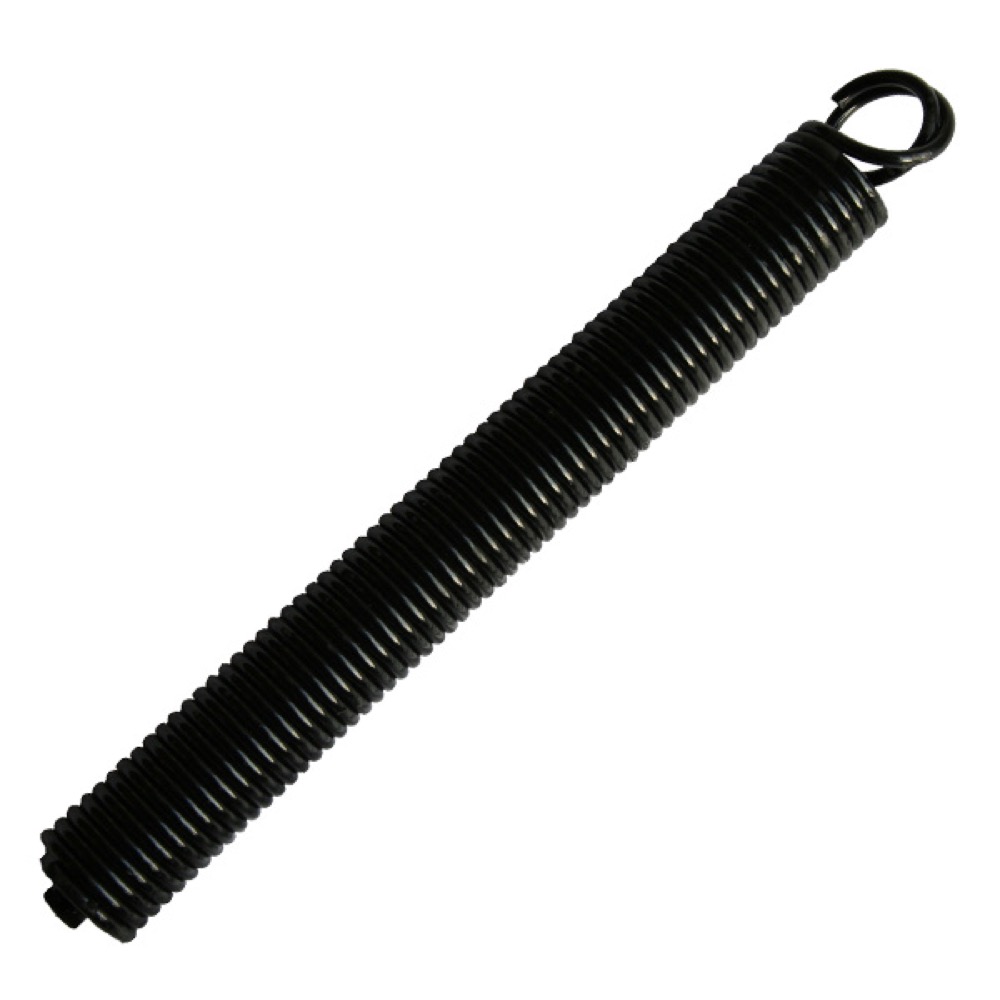

Henderson Ultra 150 Mk2 Garage Door Spring

Description
Size/spec

When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.
Henderson Ultra 150 Mk2 garage door spring - replaces Ultra 140 Mk 2. Suits Ultra 140 & 150 Mk2, double Dolphin doors over 14'6" to 16' wide, Classic 1470, Single skin GRP 7066/7070 doors.

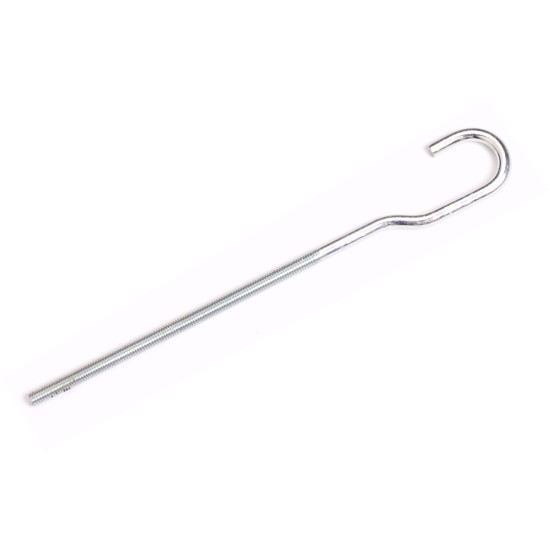

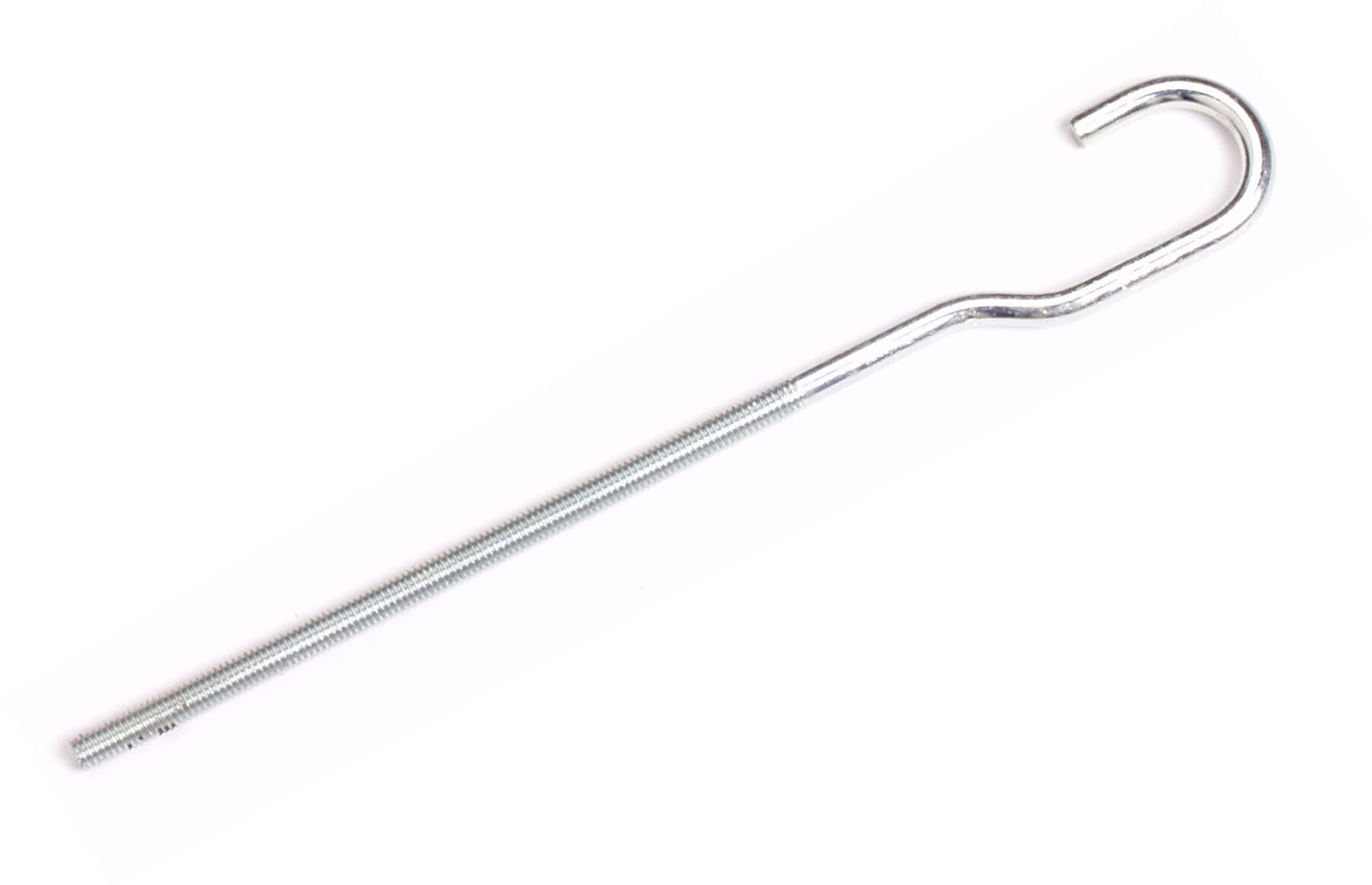

If you require the hooked-end adjuster bolt, please select this by clicking the tick box when adding the spring to your basket.
Approx Wire Diameter 7mm
Approx Number of Coils 62
Overall Diameter approx 53mm
Length Excluding Hooks approx 422mm

Please note, the sizes given are approximate sizes. As the springs are made in batches, the lengths can differ slightly and number of coils can also differ slightly, plus you can get half coils etc at the top and bottom.
