Henderson T-Handle External & Internal Lock Set

Description

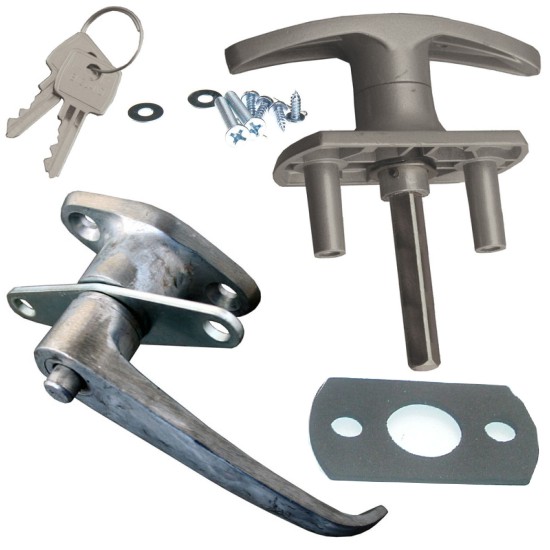

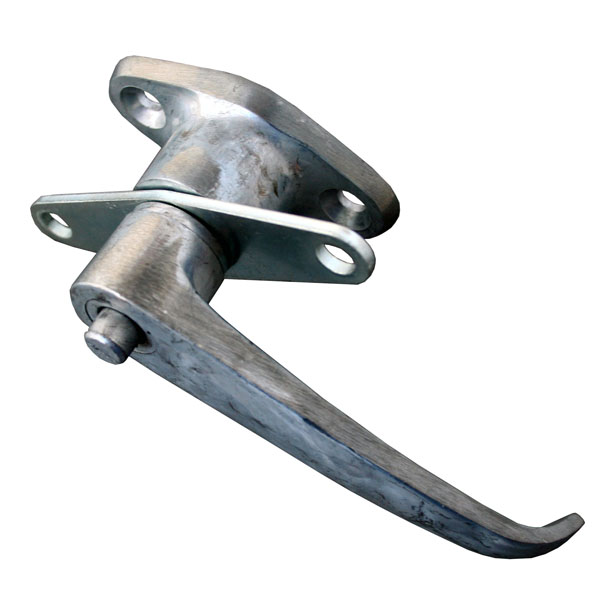

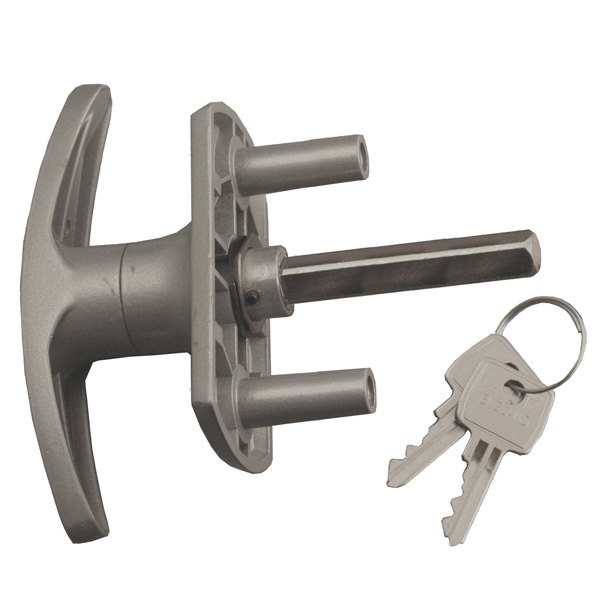

New Henderson RLB type T-Handle Garage Door Lock & Internal Handle with centre push button release
Suitable for older type Henderson Doors - replaces the very early front handle with the hollow shaft (obsolete) - you need to replace with this set as your existing back handle will not work with this later type front handle.
The spindle of the front handle must be cut down to suit the door thickness, otherwise when you attach the front and back handle together, it will force apart the back handle and break it.
Spindle 75mm, set on a diamond - can be cut to suit
35mm spigots (bolt stumps) which are 50mm apart
Foam backing pad, T-handle as per Henderson part number 032085
Comes complete with 2 Keys and fixing bolts
Please note, there are 2 version of this handle. This version is to mount the fixing holes in the North and South position and for the handle to turn clockwise. There is another version, which is mounted in the East and West position and moves anti-clockwise. Please see our related products area below.
You must fit the correct handle for your door - like for like. If not, you will not gain the correct movement for your lock bars, meaning the lock bars will not have the throw needed to unlock, before the handle moves back to the locked position. The specific handle types were fitted to each matched door by the manufacturers in order to fit with their panel, bracing and lock bars etc.
