Henderson Dolphin GREY Garage Door Spring

Henderson Dolphin GREY Garage Door Spring

Same Day Dispatch Available

Order before 12 pm Mid-Day today for same-day dispatch
(Monday-Friday only) Excluding Bank Holidays.

Saturday /Sunday Delivery Available

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Calculate Shipping Cost

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Spring Finder

Click the button below to view our Spring Chart to help you find the correct spring.

SPRING FINDER

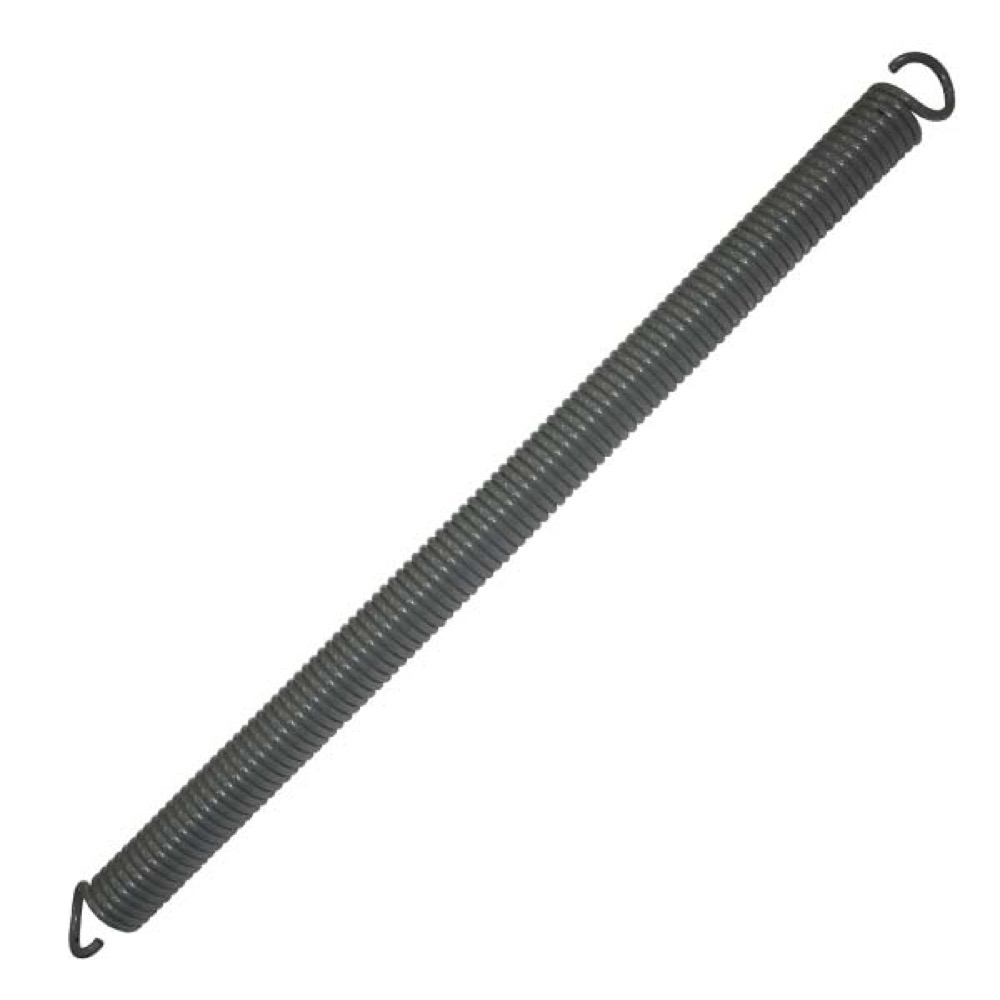

Henderson Dolphin GREY Garage Door Spring
  • When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.

  • Henderson Dolphin GREY Spring used on most single and some double garage doors upto 13ft. The original Henderson part number is 028532

  • Henderson Dolphin springs were all manufactured to the same dimensions, but using a different grade of metal to achieve the difference in spring strength. Usually the Dolphin springs were identified by their colour.

  • Suits the following door styles; Dolphin 7066 to 8070, Double Dolphin 10'0" to 12'6", Merlin tracked 7'0 to 8,0", Doric tracked 7'0" to 8'0", Regent tracked 7'0" to 7'6", Sovereign 7066/7070, Warwick, Lincoln & Gloucester tracked 7066/7070 doors

  • Wire Diameter 5.38mm

  • Number of Coils 99

  • Overall Diameter 37mm

  • Length Excluding Hooks 533mm
Spring Specification
Door WidthSingle
Spring Diameter37mm
Spring Wire Diameter5.5mm
No. of Coils100
Spring Length533mm

Write a review

Note: HTML is not translated!
Bad Good
  • Stock: In Stock
  • Model: Henderson Dolphin GREY Garage Door Spring
  • Weight: 2,000.00g
£26.99
Ex Vat: £22.49

Available Options
