Garador ORIGINAL R / FR / MK3R Garage Door Spring

Description
Size/spec

Garador Original R/FR type spring is to suit Retractable doors with one spring down either side. These doors have horizontal tracks, when the door is open it goes in the garage almost all the way. These springs are also a suitable replacement spring for Garador Mk3R doors
When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.
The original MK3R springs are now obsolete. R type springs are used instead. The substitute springs are a little longer than the originals, so to allow for this you should rotate/lower the bottom spring bracket and then re-fix it.

There are 12 varying strengths of this spring. They are identified by the number stamped on one end of the spring, or by using our spring chart;

Spring S108-901: (current part no: 4763)
Spring S108-903: (current part no: 4764)
Spring S108-905: (current part no: 4765)
Spring S108-907: (current part no: 4766)
Spring S108-909: (current part no: 4767)
Spring S108-911: (current part no: 4768)
Spring S108-913: (current part no: 4769)
Spring S108-915: (current part no: 4770)
Spring S108-921: (current part no: 4774)
Spring S108-923: (current part no: 4775)
Spring S108-925: (current part no: 4776)
Spring S108-927: (current part no: 4777)
Approx Wire Diameter N/A
Approx Number of Coils 182
Overall Diameter approx 28mm
Length Excluding Hooks approx 610mm

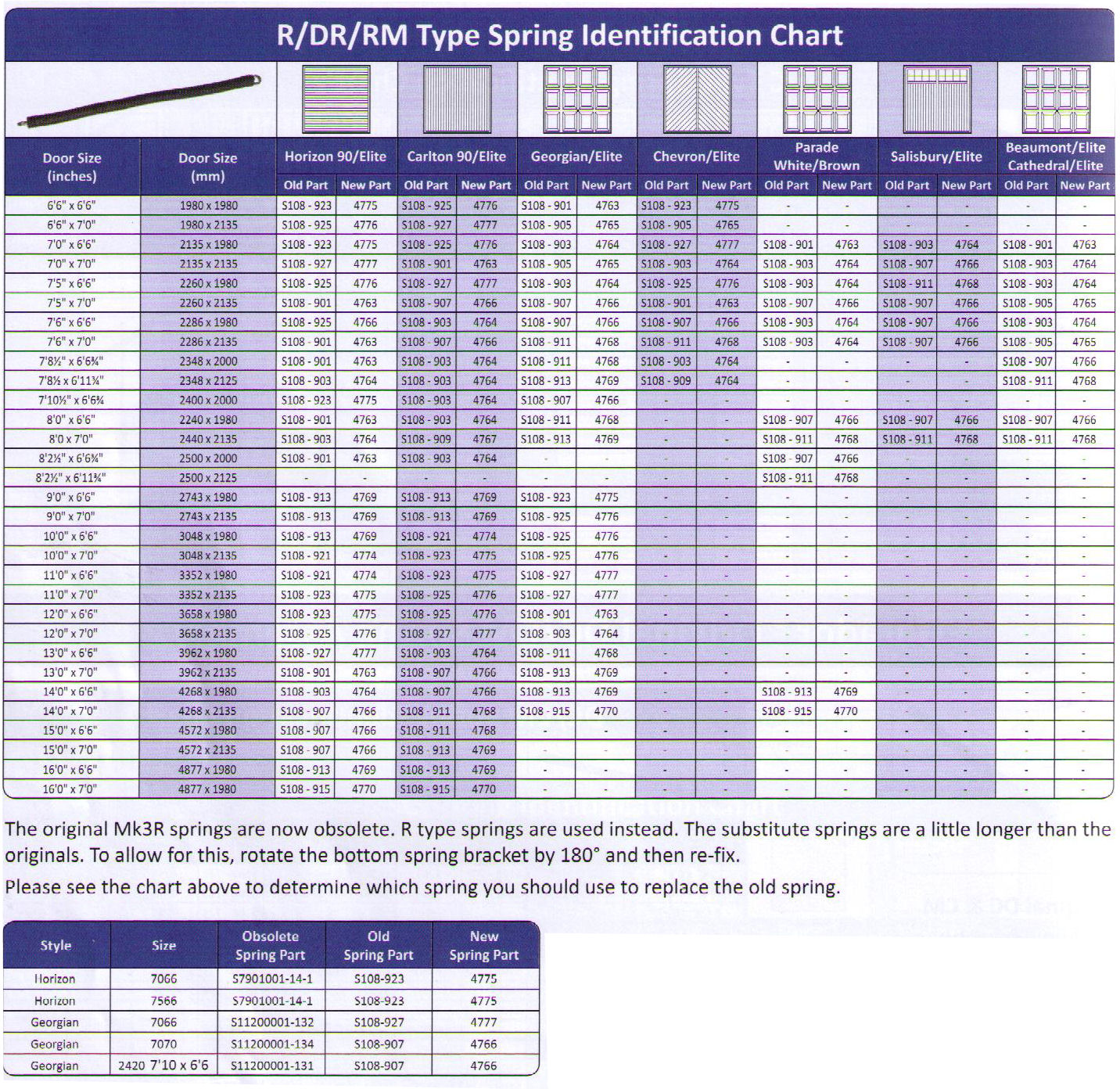

Please see spring table to determine the spring number required, or to confirm correct spring strength for size of door. The spring number is usually stamped into one end of the spring

Please note, the sizes given are approximate sizes. As the springs are made in batches, the lengths can differ slightly and number of coils can also differ slightly, plus you can get half coils etc at the top and bottom.

Spring Specification
Door Width	Single
Spring Diameter	28mm
Spring Wire Diameter	N/A
No. of Coils	182
Spring Length	610mm

Ask a question about this product

Stock: In Stock
Brand: Garador
Model: Garador R/FR Spring

Garador

0 reviews - Write a review

£103.96

Ex Tax: £86.63

Available Options

Spring Strength Number

Additional Products that may help

Garage Door Oil (+£3.95)

Qty

Add to Cart

Buy now Credit/Debit Card

Add to Wish List

Delivery across the UK, islands & worldwide

View delivery options

Garage Door Spring Charts

Use this chart to identify the correct spring by door size and style. Click the spring code to go straight to the product.

How to use:

Click a section title to expand or collapse. Multiple sections can be open at once.
On mobile, swipe sideways to view all columns. Headers and the first column stay visible.
Click any spring code to open the product with the option pre-selected.
On the product page you will see a popup confirming the selection. Click Continue and add to cart.

STEEL DOORS

Door size (W × H)	Georgian/Elite	Beaumont/Elite	Cathedral/Elite	Carlton/Elite	Salisbury/Elite	Horizon/Elite	Chevron/Elite	Parade White/Brown
6'6" x 6'3"	-	-	-	N/A	-	N/A	-	-
6'6" x 6'6"	108-901	-	-	108-925	-	108-923	108-925	-
6'6" x 7'0"	108-905	-	-	108-927	-	108-925	108-905	-
7'0" x 6'3"	-	-	-	N/A	-	N/A	-	-
7'0" x 6'6"	108-903	108-901	108-901	108-925	108-903	108-923	108-927	108-901
7'0" x 7'0"	108-905	108-903	108-903	108-901	108-907	108-927	108-903	108-903
7'3½" x 6'4"	-	-	-	N/A	-	N/A	-	-
7'5" x 6'3"	-	-	-	N/A	-	N/A	-	-
7'5" x 6'6"	108-903	108-903	108-903	108-927	108-911	108-925	108-925	108-903
7'6" x 7'0"	108-907	108-905	108-905	108-907	108-907	108-901	108-901	108-905
7'6" x 6'6"	108-907	108-903	108-903	108-903	108-907	108-925	108-907	108-903
7'6" x 7'0"	108-911	108-905	108-905	108-907	108-907	108-901	108-911	108-903
7'8½" x 6'3"	-	-	-	N/A	-	N/A	-	-
7'8½" x 6'6¾"	108-911	108-907	108-907	108-903	-	108-901	108-903	-
7'8½" x 6'11¾"	108-913	108-911	108-911	108-903	-	108-903	108-907	-
8'0" x 6'3"	-	-	-	N/A	-	N/A	-	-
8'0" x 6'6"	108-911	108-907	108-907	108-903	108-907	108-901	-	108-907
8'0" x 7'0"	108-913	108-911	108-911	108-909	108-911	108-903	-	108-911
8'2½" x 6'3"	-	-	-	N/A	-	N/A	-	-
8'2½" x 6'6¾"	-	-	-	-	-	-	-	108-907
8'2½" x 6'11¾"	-	-	-	-	-	-	-	108-911

FIBREGLASS DOORS

Door size (W × H)	Stamford	Arden (White)	Kenmore (Brown)	Derwent	Swinton	Clifton	Oakham	Woburn
7'0" x 6'6"	108-907	108-907	108-907	108-907	108-907	108-907	108-907	108-907
7'0" x 7'0"	108-907	108-907	108-907	108-907	108-907	108-907	108-907	108-907
7'5" x 6'6"	108-907	108-907	108-907	108-907	108-907	108-907	108-907	108-907
7'6" x 7'0"	108-907	108-907	108-907	108-907	108-907	108-907	108-907	108-907

TIMBER DOORS

Door size (W × H)	Chevron Cedar	Vertical Cedar	Sandhurst	Cavendish	Wolsey	Seymour	Tudor	Horizontal Cedar
7'0" x 6'6"	108-901	108-923	-	-	108-903	108-903	108-903	N/A
7'0" x 7'0"	108-903	108-923	108-907	108-907	108-903	108-903	108-903	N/A
7'5" x 6'6"	108-903	108-925	108-903	108-903	108-903	108-903	108-903	N/A
7'5" x 7'0"	108-907	108-901	108-907	108-907	108-907	108-907	108-907	N/A
7'6" x 6'6"	108-903	108-901	108-903	108-903	108-903	108-903	108-903	N/A
7'6" x 7'0"	108-903	108-901	-	-	108-907	108-907	108-907	N/A
