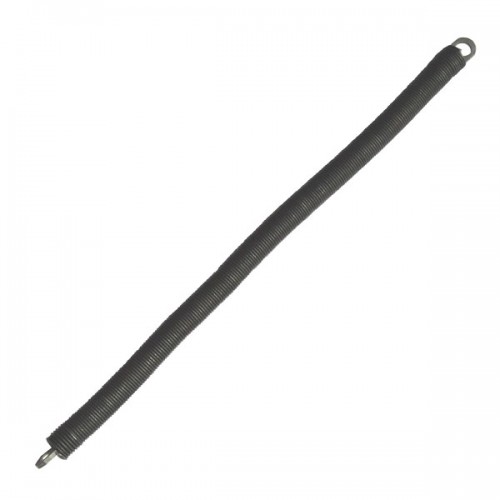

Garador ORIGINAL DC / CM Garage Door Spring

Trustpilot
Garador ORIGINAL DC / CM Garage Door Spring
Garador ORIGINAL DC / CM Garage Door Spring
Garador ORIGINAL DC / CM Garage Door Spring
Garador ORIGINAL DC / CM Garage Door Spring

Saturday /Sunday Delivery Available

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Calculate Shipping Cost

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Shipping Estimate

Post Code:
Estimate

Spring Finder

Click the button below to view the Spring Chart to help you find the correct spring.

SPRING FINDER
Garador ORIGINAL DC / CM Garage Door Spring
Ask a question about this product
  • Stock: In Stock
  • Model: Garador DC/CM Spring
Garador Garador
Based on 1 reviews. - Write a review
£93.50
Ex Tax: £77.92

Available Options

Add to Cart
Checkout using Credit/Debit Card
Add to Wish List
  • When replacing garage springs, it is recommended that you replace all the springs on the door at the same time to prevent twisting to the lift arms, which are no longer available.  At the very least, replace 2 springs, with 1 new spring fitted either side of the door closest to the lift arms.

  • Garador Original DC/CM type spring is to suit DOUBLE canopy doors with two springs down either side.  These doors have horizontal tracks, when the door is open it sticks out approx one third of it's height.

  • You can identify that your door is a DC/CM type as the lift arms are straight - not to be confused with Garador's double retractable doors which had a kinked arm.

  • There are 11 varying strengths of this spring.  They are identified by the number stamped on one end of the spring, or by using our spring chart;

    Spring S108-701: (current part no: 4748)
    Spring S108-703: (current part no: 4749)
    Spring S108-705: (current part no: 4750)
    Spring S108-707: (current part no: 4751)
    Spring S108-709: (current part no: 4752)
    Spring S108-711: (current part no: 4753)
    Spring S108-713: (current part no: 4754)
    Spring S108-721: (current part no: 4755)
    Spring S180-723: (current part no: 4756)
    Spring S180-725: (current part no: 4757)
    Spring S108-727: (current part no: 4758)
    Spring S108-728: (current part no: 4773)

  • Wire Diameter N/A

  • Number of Coils 215

  • Overall Diameter 28mm

  • Length Excluding Hooks 685mm

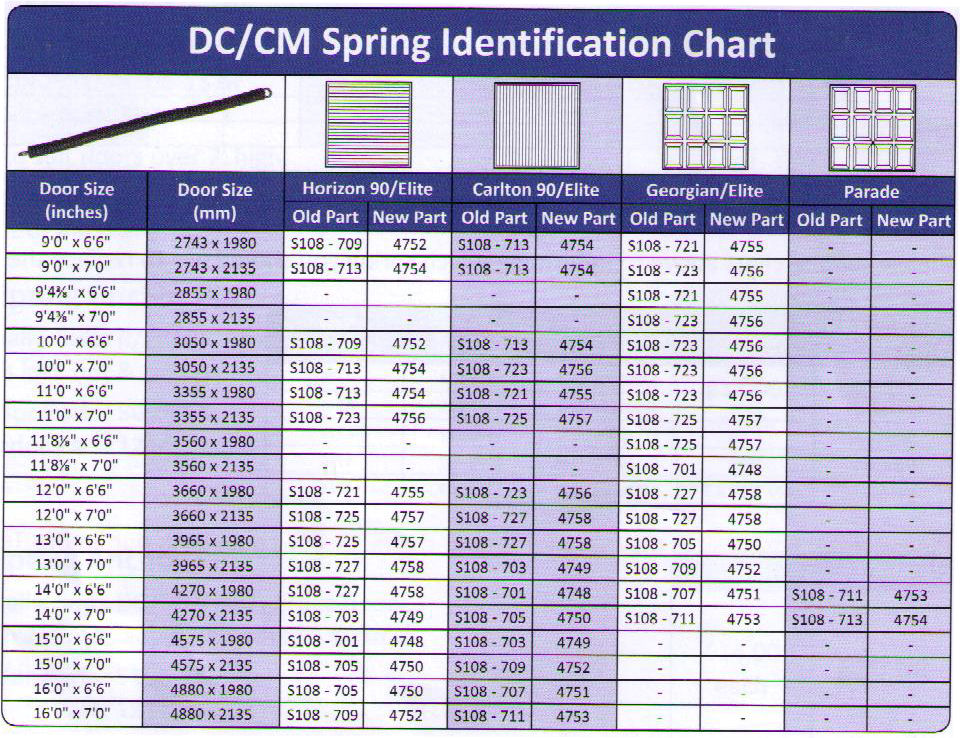

  • Please see spring table to determine the spring number required, or to confirm correct spring strength for size of door.  The spring number is usually stamped into one end of the spring


Buy 1 For £93.95 each ex VAT £78.29

Buy 4 For £93.50 each ex VAT £77.92



Spring Specification
Door Width Double
Spring Diameter 28mm
Spring Wire Diameter N/A
No. of Coils 215
Spring Length 685mm
