Garador ORIGINAL DC / CM Garage Door Spring

Garador ORIGINAL DC / CM Garage Door Spring
Garador ORIGINAL DC / CM Garage Door Spring
Garador ORIGINAL DC / CM Garage Door Spring
Garador ORIGINAL DC / CM Garage Door Spring
Garador ORIGINAL DC / CM Garage Door Spring
  • When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.

  • Garador Original DC/CM type spring is to suit DOUBLE canopy doors with two springs down either side.  These doors have horizontal tracks, when the door is open it sticks out approx one third of it's height.

  • You can identify that your door is a DC/CM type as the lift arms are straight - not to be confused with Garador's double retractable doors which had a kinked arm.  It is recommended that you replace a pair at the same time.

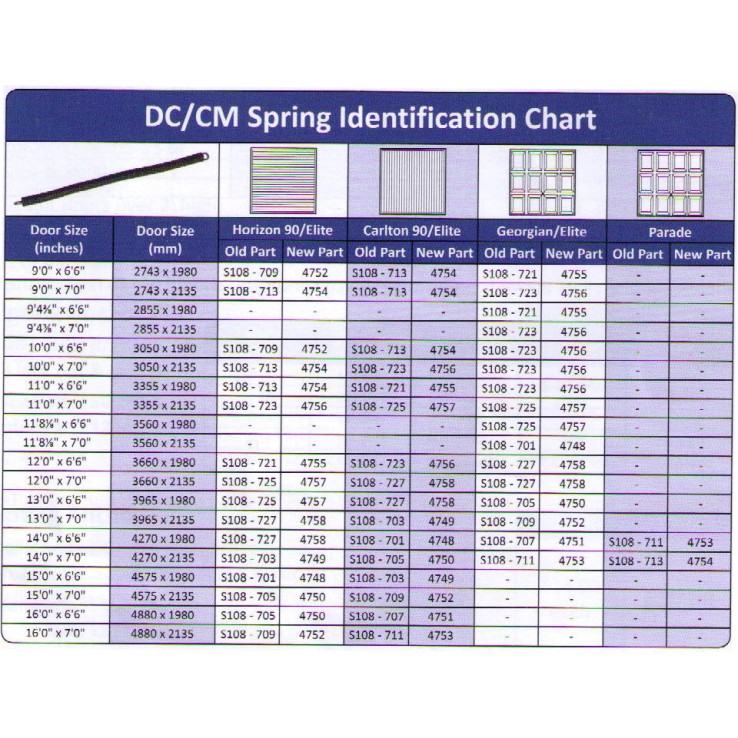

  • There are 11 varying strengths of this spring.  They are identified by the number stamped on one end of the spring, or by using our spring chart;

    Spring S108-701: (current part no: 4748)
    Spring S108-703: (current part no: 4749)
    Spring S180-705: (current part no: 4750)
    Spring S180-707: (current part no: 4751)
    Spring S108-709: (current part no: 4752)
    Spring S108-711: (current part no: 4753)
    Spring S108-713: (current part no: 4754)
    Spring S108-715: (current part no: 4773)
    Spring S108-721: (current part no: 4755)
    Spring S180-723: (current part no: 4756)
    Spring S180-725: (current part no: 4757)
    Spring S108-727: (current part no: 4758)

  • Wire Diameter N/A

  • Number of Coils 215

  • Overall Diameter 28mm

  • Length Excluding Hooks 685mm

  • Please see spring table to determine the spring number required, or to confirm correct spring strength for size of door.  The spring number is usually stamped into one end of the spring


Buy 1 For £71.95 each ex VAT £59.96

Buy 4 For £69.76 each ex VAT £58.13



Spring Specification
Door WidthDouble
Spring Diameter28mm
Spring Wire DiameterN/A
No. of Coils215
Spring Length685mm
  • Model: Garador DC/CM Spring
  • Weight: 3,100.00g
  • Dimensions: 650.00mm x 50.00mm x 50.00mm
  • SKU: Double
  • UPC: 28mm
  • JAN: 215
  • ISBN: 685mm
£69.76
Ex Vat: £58.13
