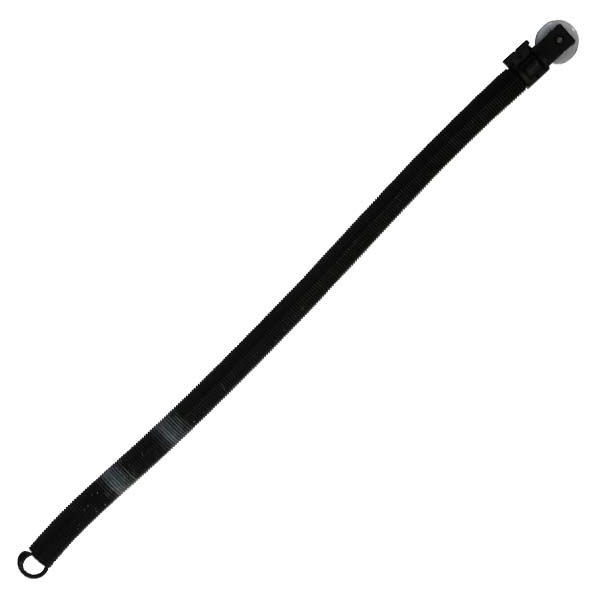

Garador ORIGINAL C-type Side Extension Spring

Garador ORIGINAL C-type Side Extension Spring
Garador ORIGINAL C-type Side Extension Spring
Garador ORIGINAL C-type Side Extension Spring
Garador ORIGINAL C-type Side Extension Spring

Same Day Dispatch Available

Order before 12 pm Mid-Day today for same-day dispatch
(Monday-Friday only) Excluding Bank Holidays.

Saturday /Sunday Delivery Available

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day
Garador ORIGINAL C-type Side Extension Spring
  • When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.

  • Garador Original C-type spring is to suit canopy doors with a single spring down either side.  C-type were manufactured between 1999 and 2002.

  • You can identify that your door is a C-type if it has a white pulley wheel at the top end of the spring, and a cast metal bracket with a white angled pulley wheel at the top corners of the door

  • There are 6 varying strengths of this spring.  They are identified by coloured bands;

    Spring 1: 1x White band (current part no: 4733)
    Spring 2: 2x White bands (current part no: 4734)
    Spring 3: 1x Green band (current part no: 4735)
    Spring 4: 2x Green bands (current part no: 4736)
    Spring 5: 1x Red band (current part no: 4737)
    Spring 6: 2x Red bands (current part no: 4738)
  • Wire Diameter N/A

  • Number of Coils 210

  • Overall Diameter 28mm

  • Length Excluding Hooks 673mm

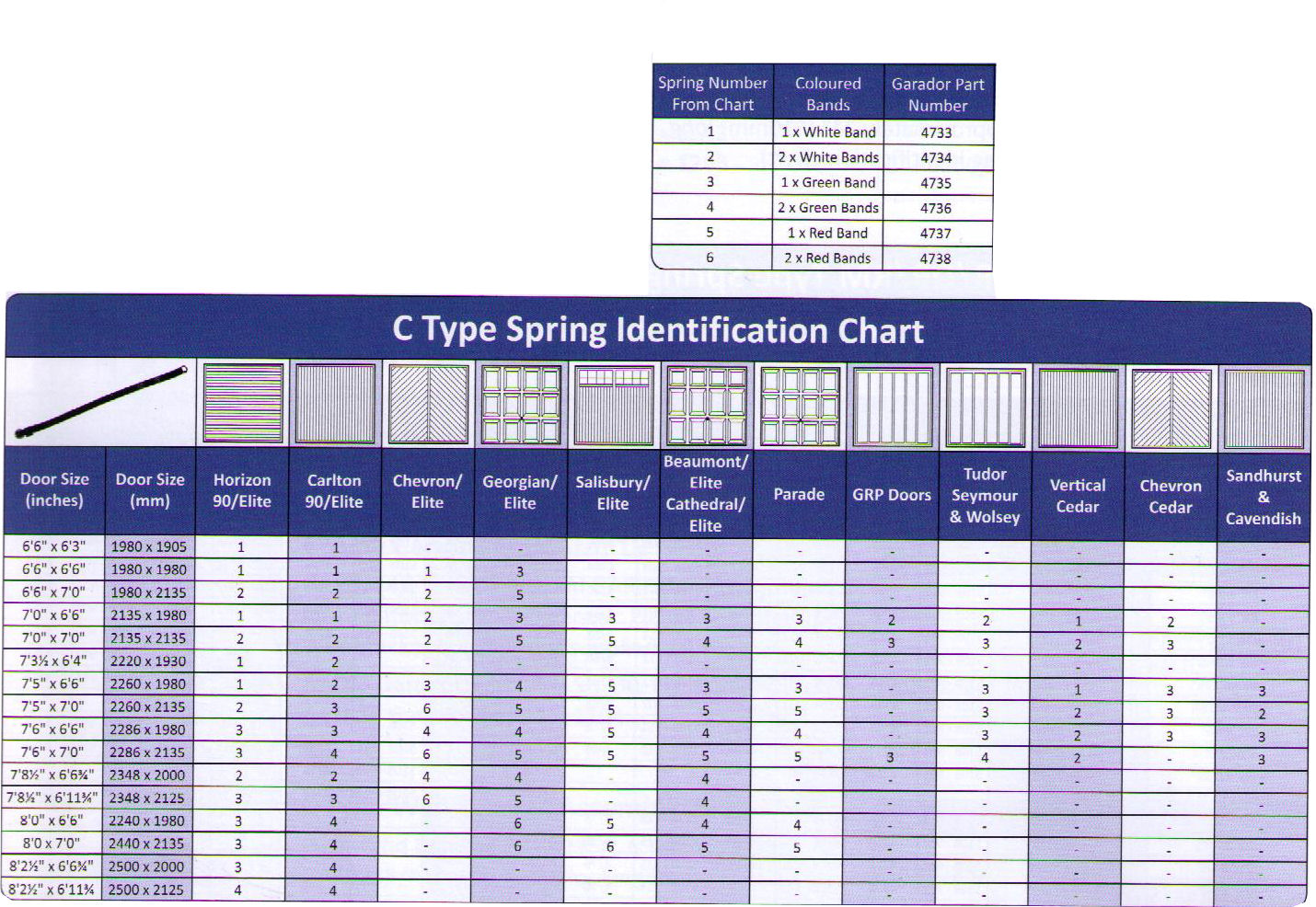

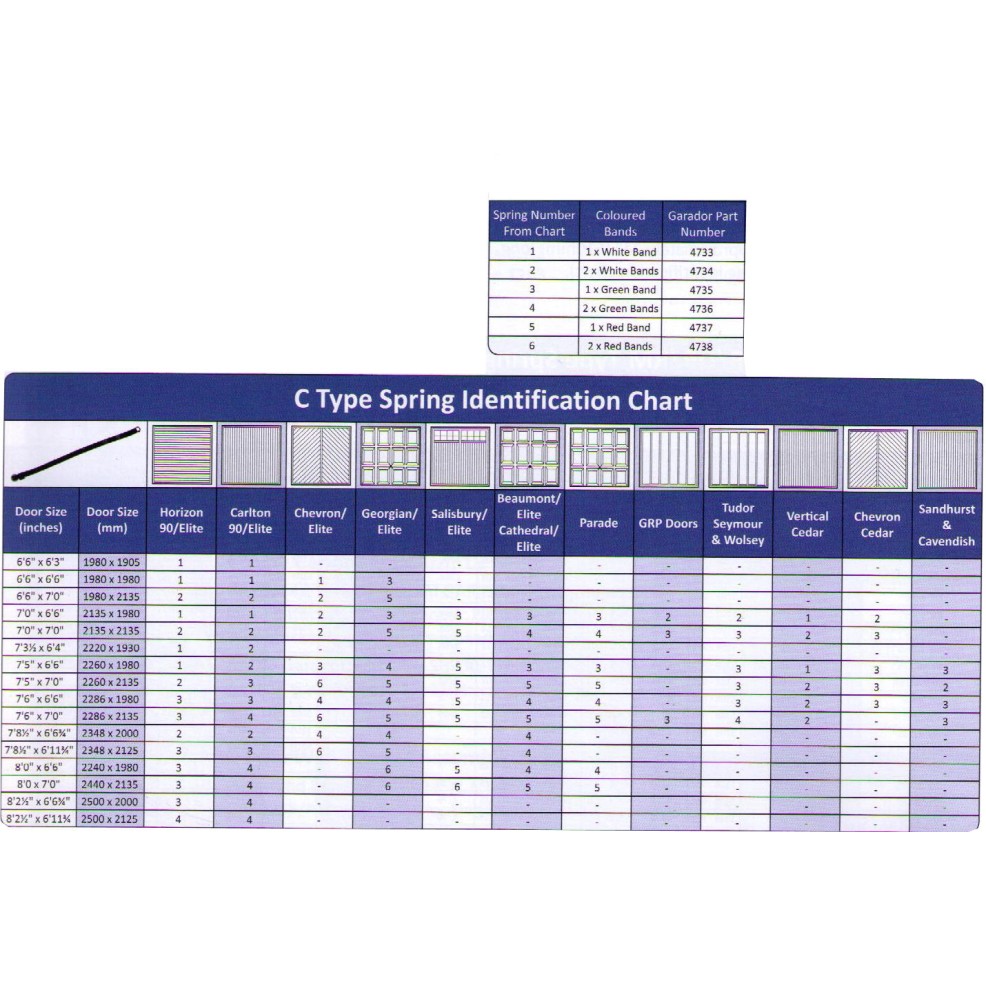

  • Please see spring table to confirm spring number if the coloured bands are no longer visible on your spring, or to confirm correct spring strength for size of door

Spring Specification
Door WidthSingle
Spring Diameter28mm
Spring Wire DiameterN/A
No. of Coils210
Spring Length673mm
  • Stock: In Stock
  • Model: Garador C-type Spring
  • Weight: 3,100.00g
