Garador ORIGINAL DC / CM Garage Door Spring

• When replacing garage springs, it is recommended that you replace all the springs on the door at the same time to prevent twisting to the lift arms, which are no longer available.  At the very least, replace 2 springs, with 1 new spring fitted either side of the door closest to the lift arms.


• Garador Original DC/CM type spring is to suit DOUBLE canopy doors with two springs down either side.  These doors have horizontal tracks, when the door is open it sticks out approx one third of it's height.


• You can identify that your door is a DC/CM type as the lift arms are straight - not to be confused with Garador's double retractable doors which had a kinked arm.


• There are 11 varying strengths of this spring.  They are identified by the number stamped on one end of the spring, or by using our spring chart;

  Spring S108-701: (current part no: 4748)
  Spring S108-703: (current part no: 4749)
  Spring S108-705: (current part no: 4750)
  Spring S108-707: (current part no: 4751)
  Spring S108-709: (current part no: 4752)
  Spring S108-711: (current part no: 4753)
  Spring S108-713: (current part no: 4754)
  Spring S108-721: (current part no: 4755)
  Spring S180-723: (current part no: 4756)
  Spring S180-725: (current part no: 4757)
  Spring S108-727: (current part no: 4758)
  Spring S108-728: (current part no: 4773)


• Wire Diameter N/A


• Number of Coils 215


• Overall Diameter 28mm


• Length Excluding Hooks 685mm

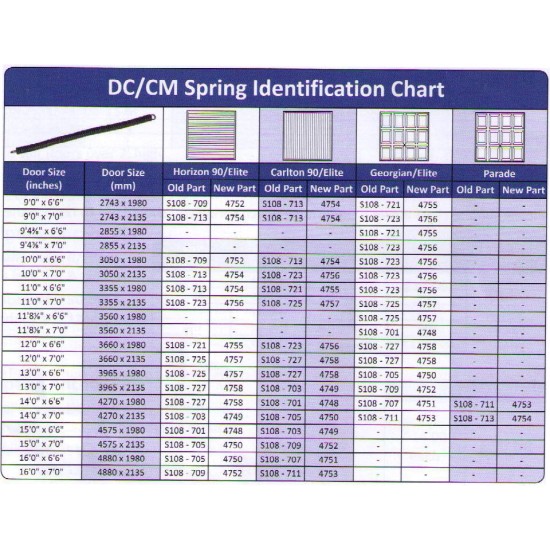

• Please see spring table to determine the spring number required, or to confirm correct spring strength for size of door.  The spring number is usually stamped into one end of the spring

Buy 1 For £93.95 each ex VAT £78.29

Buy 4 For £93.50 each ex VAT £77.92
