Name: Fort Door Garage Door Retractable Spring
Brand: Fort Door
Price: 19.96 GBP
Availability: InStock

Delivery across the UK, islands & worldwide

Most products qualify for standard mainland UK postage rates to Northern Ireland, the Scottish Highlands, Channel Islands, Isle of Man, Isle of Wight and Isles of Scilly. International delivery is also available.

View delivery options

Fort Door Garage Door Retractable Spring

Saturday /Sunday Delivery Available

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Calculate Shipping Cost

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Post Code:

Estimate

For all technical questions, please drop us an email with any applicable images and we will get back to you.

Spring Finder

Click the button below to view the Spring Chart to help you find the correct spring.

SPRING FINDER

Fort Door Garage Door Retractable Spring

Description
Size/spec

When replacing garage springs, it is recommended to replace all springs at the same time, to ensure the spring tension and door remain balanced, and no damage is caused to the lift arms by twisting etc.

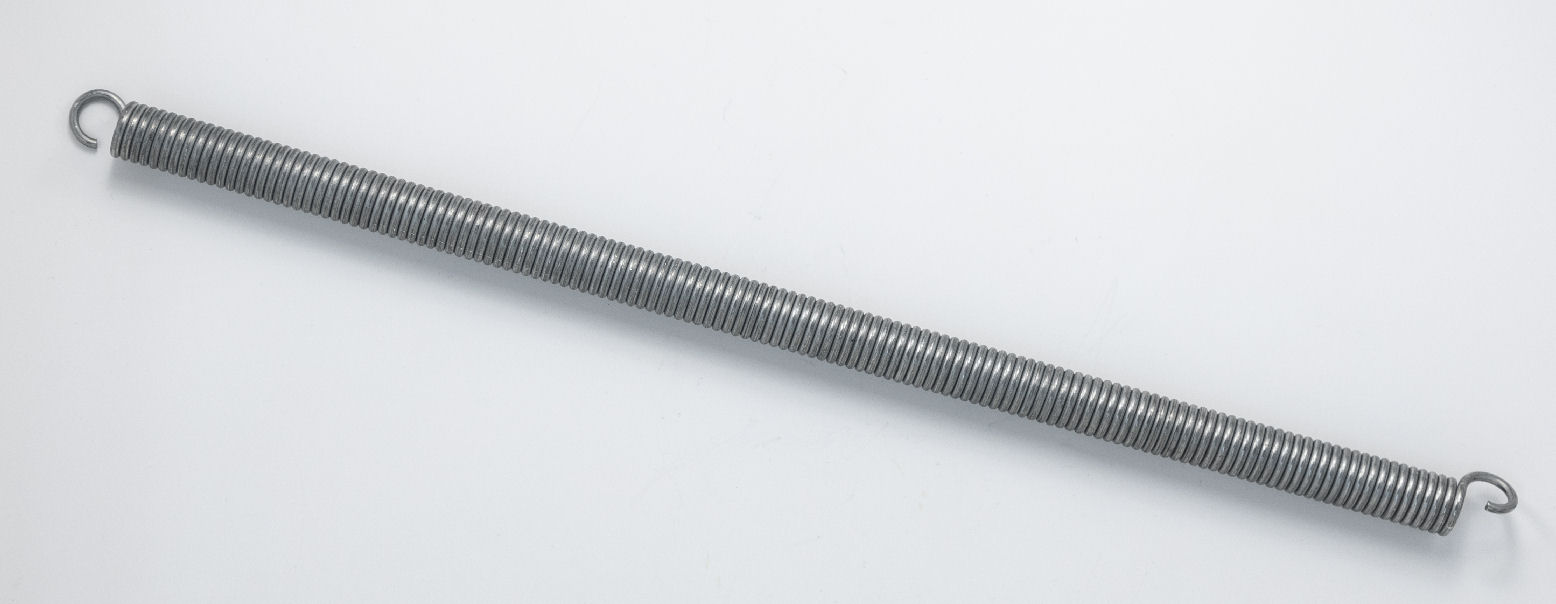

Fort door Spring used on old retractable door gear which has multiple springs each side.
Please select the springs you need from the drop-down box below which matches your door height (6ft 6" or 7ft high doors)
Spring sizes;

6ft 6" High Door Spring
Approx Wire Diameter 3.2mm
Approx Number of Coils 140
Overall Diameter approx 20mm
Length Excluding Hooks approx 460mm

7ft High Door Spring
Approx Wire Diameter 3.3mm
Approx Number of Coils 720
Overall Diameter approx 20mm
Length Excluding Hooks approx 570mm

IT IS NOT ADVISED TO SWAP SINGLE SPRINGS ON THE DOOR - WE ADVISE YOU TO SWAP ALL THE SPRINGS SO THEY MATCH
Please see our related products area below for lock handles etc.

Please note, the sizes given are approximate sizes. As the springs are made in batches, the lengths can differ slightly and number of coils can also differ slightly, plus you can get half coils etc at the top and bottom.
