Euro Cylinder Single Side Door Lock Barrel
- Stock: In Stock
- Model: Single Euro Cylinder
£10.96
Ex Tax: £9.13
Available Options

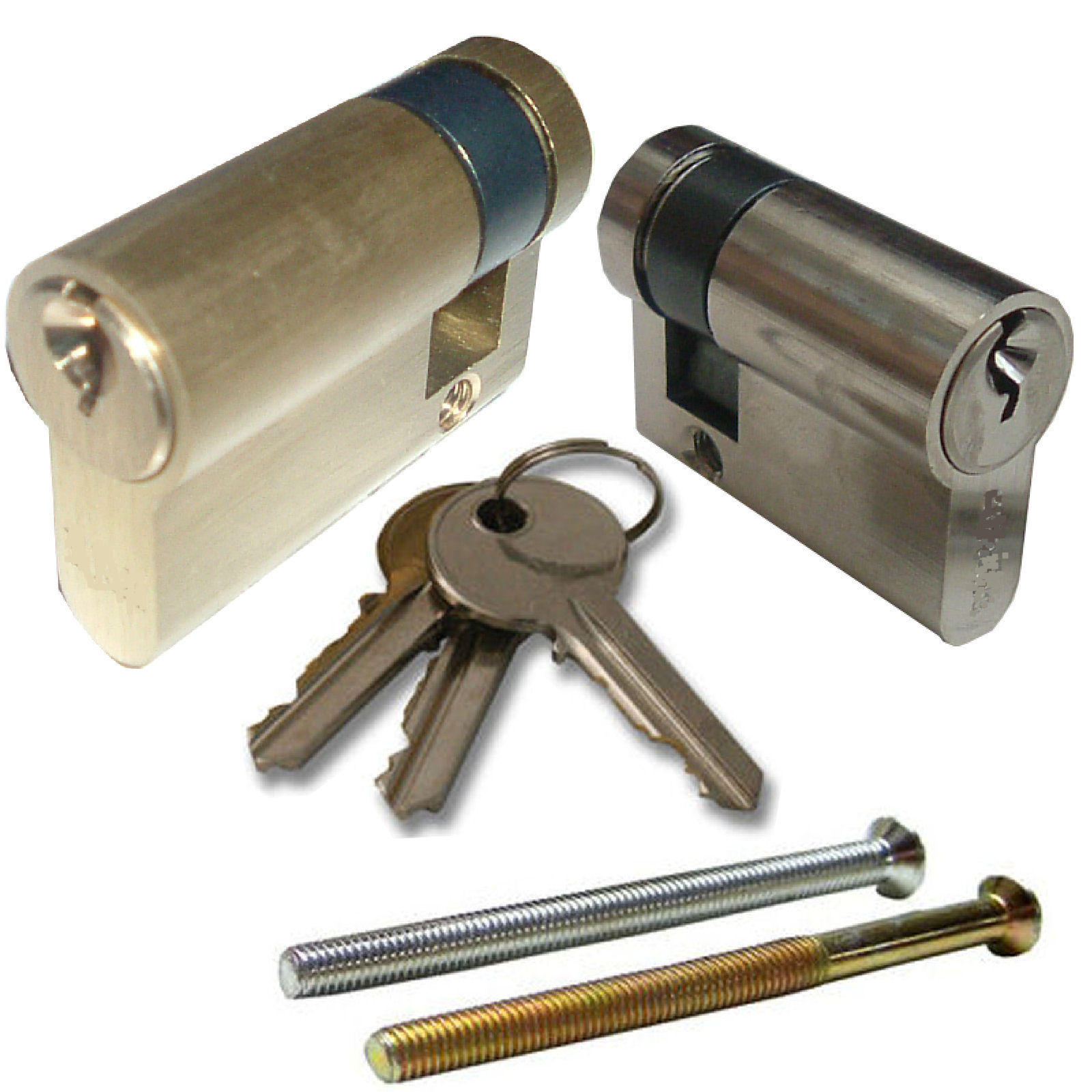

- New 6-Pin Euro Cylinder complete with fixing bolt & 3 keys, smooth & easy operation
- Fitted to Henderson, Garador, Cardale, Wessex, Wickes and Hormann, plus many other Garage Doors. Typical sizes fitted to the following doors (please measure your existing cylinder before choosing);
Garador: 40mm, 45mm, 55mm, 60mm, 65mm
Henderson: 55mm, 70mm or 80mm
Hormann: 40mm, 45mm, 55mm, 60mm
Cardale: (also Apex, Wessex, Wickes) 40mm
Wayne Dalton: 40mm or 50mm
- Comes complete with 3 keys and Fixing Bolt in Brass or Nickel Finish (please select your size and colour from the options listed in the drop-down below)
- Fitted to many various locks on garage doors, including the following;
Cardale Eurolock, Garador Eurolock, Garador G3 lock, Henderson doors post-1992, and many doors supplied by Wickes and B&Q. - Sizes available are 40mm, 45mm, 50mm, 55mm, 60mm, 70mm & 80mm

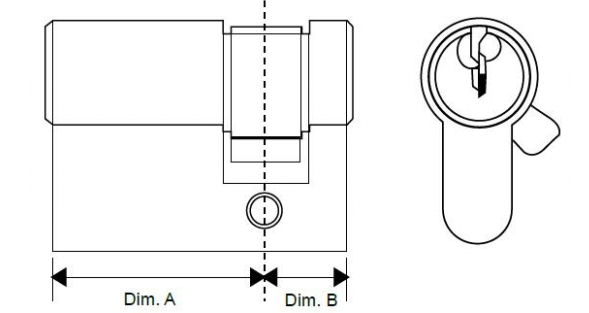

- Measuring diagram shows how cylinders are measured , so if you need a 40mm cylinder for example, Measurement A would be 30, B would be 10. Called a Single or Half Cylinder as the key goes in one side only.
- PLEASE SEE OUR WEBSITE FOR MANY OTHER LOCKS AND DOUBLE CYLINDERS (Key goes in both sides) SUITABLE FOR FRONT, BACK & SIDE GARAGE AND HOUSE DOORS ETC
Related Products

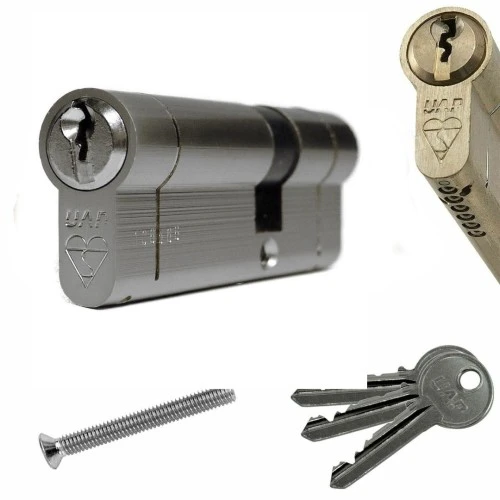

UAP Kitemarked 6-Pin Euro Cylinder complete with 3 keys and fixing screw in a choice of Brass or Nickel Finish, suitable for UPVC, Alum..
£14.50
Ex Tax:£12.08
Brand New Old Stock Garador Euro Lock Mechanism (barrel not included but available in our related products area below) Fitted to doors 1980 onwar..
£59.95
Ex Tax:£49.96
Brand New Old Stock Garador Euro Lock Mechanism (barrel not included but available in our related products area below) Fitted to doors 1980 onwar..
£59.95
Ex Tax:£49.96
Brand New Old Stock Henderson Euro Lock Mechanism (barrel not included but available in our related products area below) Fitted to doors 2002 onw..
£59.95
Ex Tax:£49.96
Brand New Old Stock Novoferm Euro Lock Mechanism (barrel not included but available in our related products area below) This is an obsolete..
£59.95
Ex Tax:£49.96

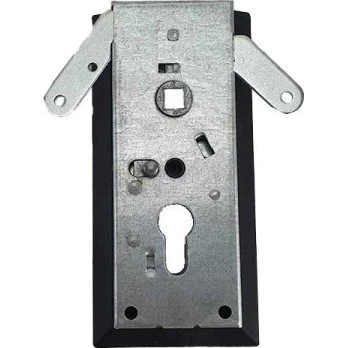

Novoferm Euro Lock Mechanism (barrel not included but available in our related products area below) Fits current Novoferm up and over garag..
£54.90
Ex Tax:£45.75

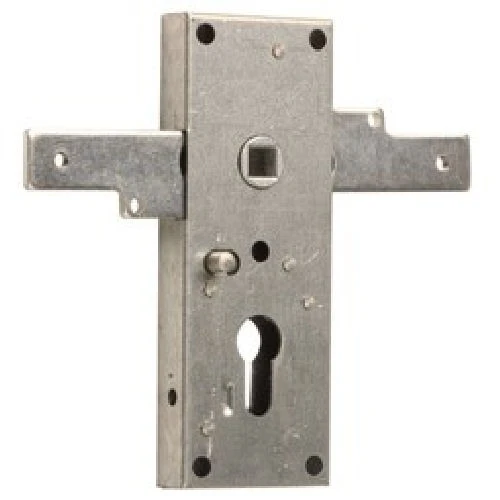

Brand New Old Stock Gliderol Euro Lock Mechanism (barrel not included but available in our related products area below) Fitted to Folding Section..
