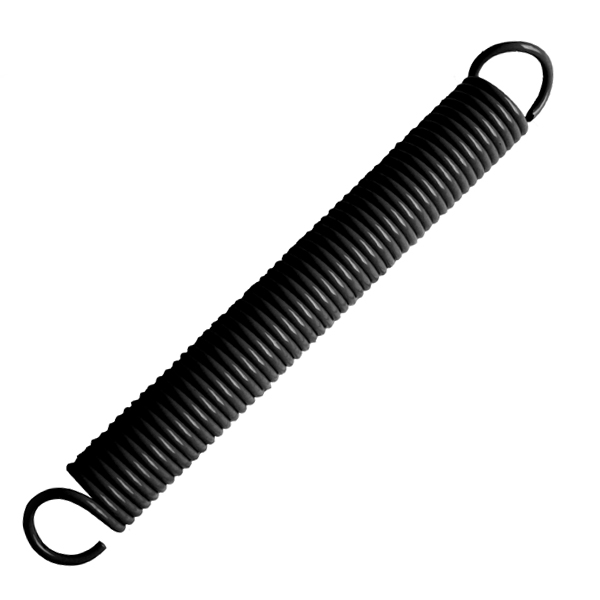

Cardale Small (Blue) SLIDEAWAY Garage Door Spring

Cardale Small (Blue) SLIDEAWAY Garage Door Spring
Cardale Small (Blue) SLIDEAWAY Garage Door Spring
  • Cardale replacement 'Small Blue or 'Small'' spring fitted to Slideaway (retractable) garage doors with straight arms upto 1996 (heavy single) and upto 2004 (light double).  Please do not confuse these spring with the Cardale Blue Spot Springs we also sell which were used on double width (14ft) steel doors

  • When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.

  • As per Cardale part number AZSP3302B

  • Wire Diameter 5mm

  • Number of Coils 97

  • Overall Diameter 40mm

  • Length Excluding Hooks 487mm
Spring Specification
Door WidthSingle
Spring Diameter40mm
Spring Wire Diameter5mm
No. of Coils97
Spring Length487mm
  • Model: Cardale Small Blue Spring
  • Weight: 1,900.00g
  • Dimensions: 500.00mm x 55.00mm x 55.00mm
  • SKU: Single
  • UPC: 40mm
  • JAN: 97
  • ISBN: 487mm
£38.95
Ex Vat: £32.46

Available Options
