Cardale Blue Spot Garage Door Spring for DOUBLE DOORS

Cardale Blue Spot Garage Door Spring for DOUBLE DOORS

Saturday /Sunday Delivery Available

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Calculate Shipping Cost

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Spring Finder

Click the button below to view the Spring Chart to help you find the correct spring.

SPRING FINDER
Cardale Blue Spot Garage Door Spring for DOUBLE DOORS
  • Stock: In Stock
  • Model: Cardale Blue Spot Spring
£34.96
Ex Tax: £29.13

Available Options

  • Cardale replacement 'Blue Spot' spring fitted to Double width slideaway (retractable) garage doors including; Gemini, Sheraton, Jacobean and Edwardian Steel Doors (14' x 6'6" & 14'x7'0"), and GRP doors (10'7" x 6'6" / 14'6" x 7'0") manufactured before September 1998

  • When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.

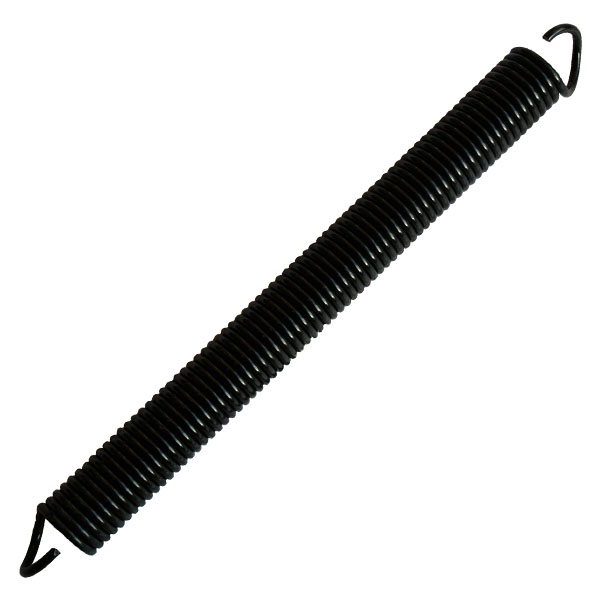

  • The spring is identified by being black with a blue spot at one end of the spring

  • As per Cardale part number AZSP3302L

  • Suits lifting gear assembly ASZP3201LL & AZSP3201SL

  • Wire Diameter 6.4mm

  • Number of Coils 74

  • Overall Diameter 50mm

  • Length Excluding Hooks 483mm

  • These springs replace the now obsolete green springs fitted to Cardale gear - if unsure please send us pictures of the back of your door as there are 2 types of obsolete green springs fitted to 2 different gear types.
Spring Specification
Door Width Double
Spring Diameter 50mm
Spring Wire Diameter 6.4mm
No. of Coils 74
Spring Length 483mm
