Avon-Ova Garage Door Spring

Description
Size/spec

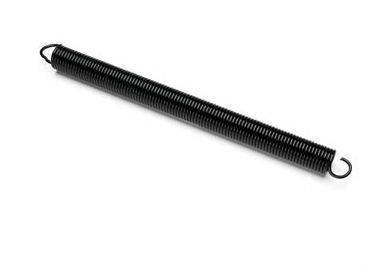

Avon-Ova garage door spring
These springs are obsolete, we have a limited quantity of these springs available. Our springs are galvanised wire (protects against corrosion) with a black and red Identifying mark on the end.
Approx Wire Diameter 5.45mm
Approx Number of Coils 101
Overall Diameter approx 40mm
Length Excluding Hooks approx 550mm
Spring has a closed loop on one end (which hooks over the lift arm) and an open loop on the other end which hooks through the bracket

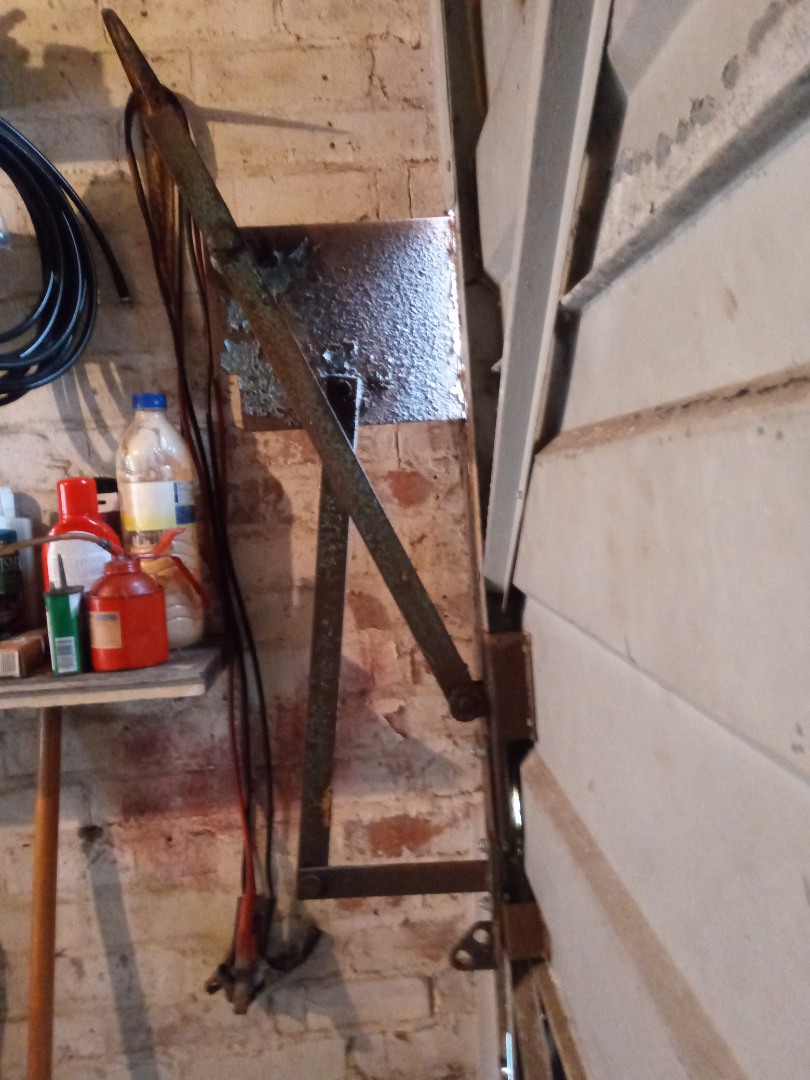

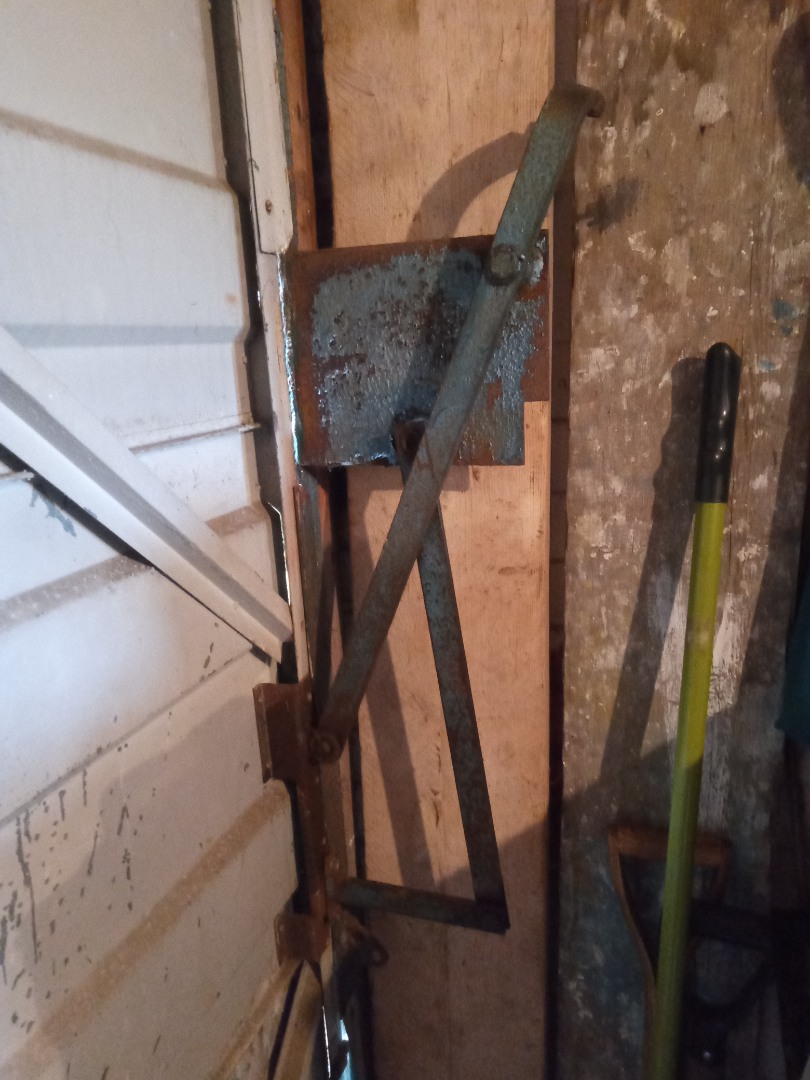

Please see images of door for identification purposes only (Avon-Over doors have a distinctive type of lift arm)

Please note, the sizes given are approximate sizes. As the springs are made in batches, the lengths can differ slightly and number of coils can also differ slightly, plus you can get half coils etc at the top and bottom.
