Marantec Comfort 270 Motor Head & Rail Kit

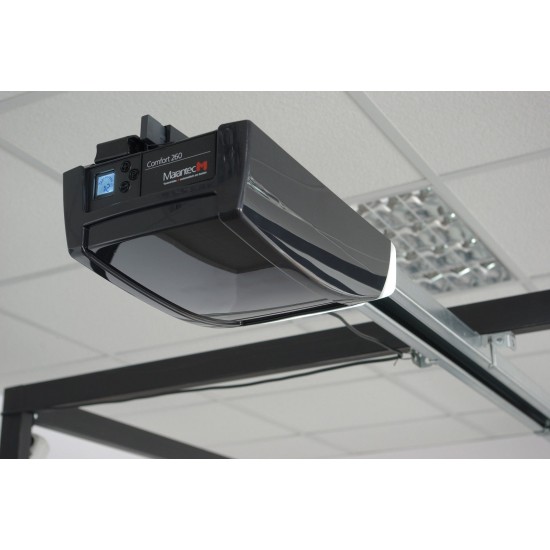

Comfort 270 – Operator system for garage doors

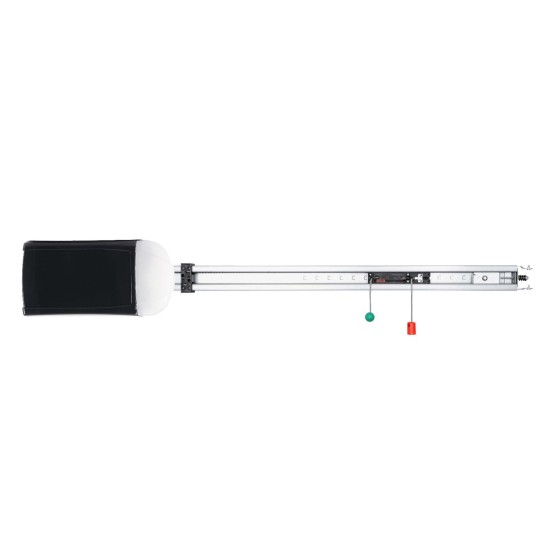

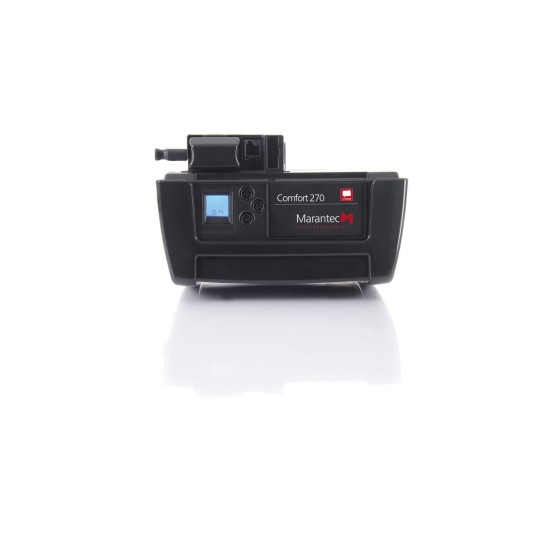

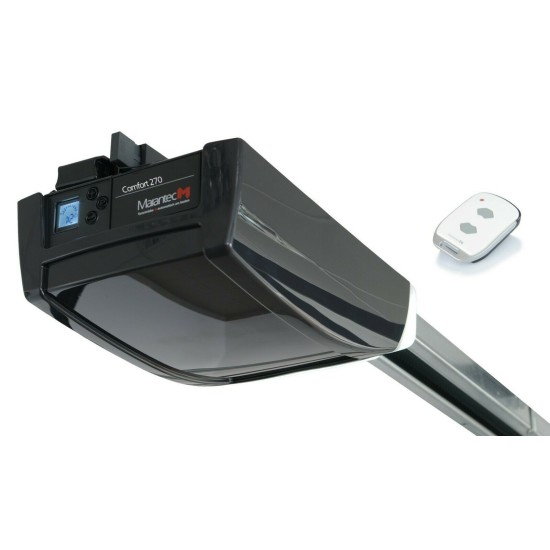

Motor unit Comfort 270 (Standard) complete with SZ11 Boom (Rail)

Operator system for garage doors – domestic use

  • For up-and-over doors up to a door width of 5000 mm and a door weight of 165 Kg
  • For single-skinned sectional doors up to a door width of 5500 mm and a door weight of 165 Kg
  • For double-skinned sectional doors up to a door width of 5500 mm and a door weight of 165 Kg
  • For retractable up-and-over doors and canopy doors up to a door width of 5000 mm, a door height of 2250 mm and a door weight of 165 Kg
  • For maximum 50 complete open/close functions per day – 100 one way operations per day (corresponding to class 2 of the RAL quality mark)
  • For operator rails with roller chains, ball rope or toothed drive belts

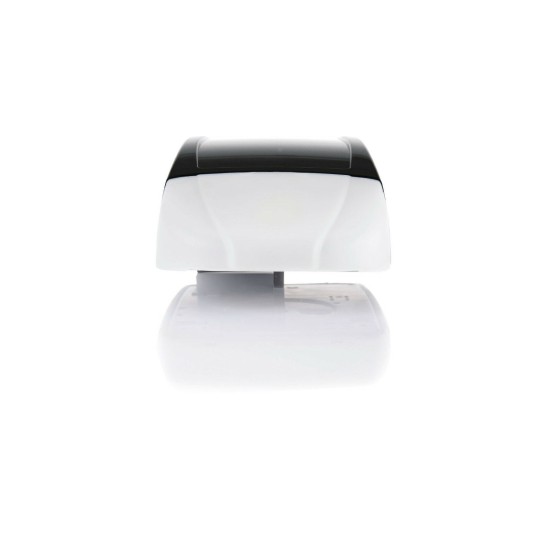

  • LED light output 40W

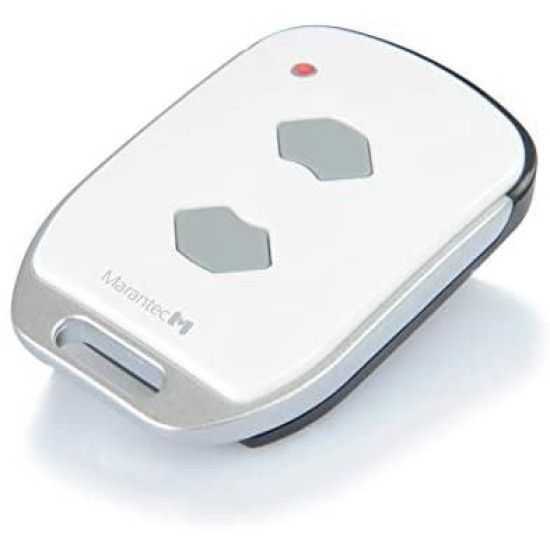

  • Comes complete with 2 x handsets (868MHz)
  • Universal Mounting Kit for up-and-over doors and sectional doors

    Electrical details

    • Nominal voltage 230 V
    • Nominal frequency 50 Hz
    • Power consumption 1,1 A
    • Power input in operation 0,25 KW
    • Power input stand-by 1,7 W
    • Operation mode (duty cycle) KB 2 min.
    • Control voltage 24 V DC
    • Protection category motor unit IP 20
    • Protection class II

    Mechanical details

    • Push and pull force 1000 N
    • Door travel speed 160 mm/sec.
    • Opening time (door-specific) approx. 18 sec.

    General details

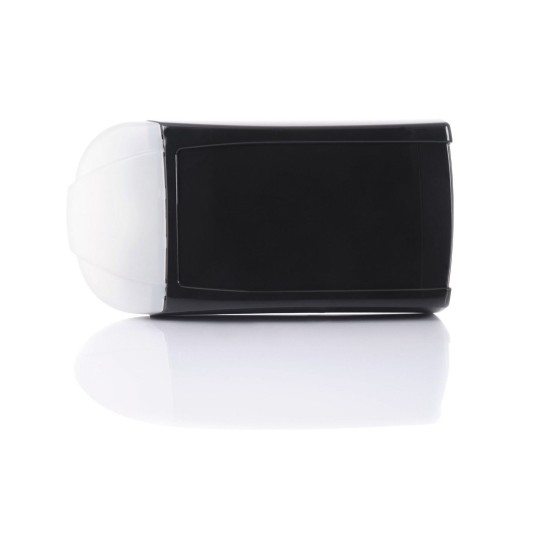

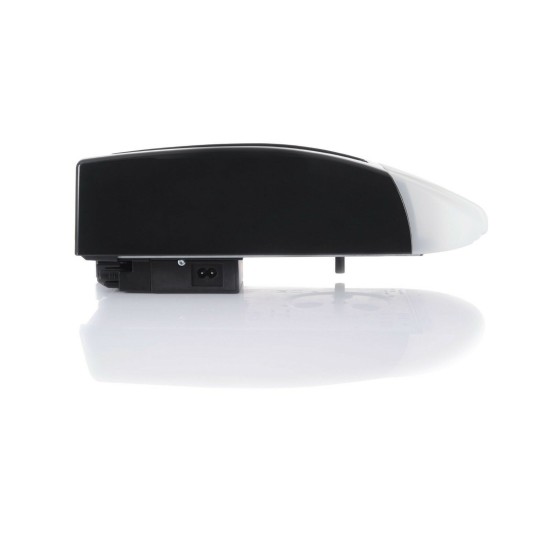

    • Measurements (Motor unit) 220 x 125 x 395 mm
    • Weight 4,2 kg
    • Range of temperature -20°C to +60°C
    • Illuminant LED (extendable) 40 / 80 W

    Functions

    • Economy mode
    • Reference point technique
    • Electronic travel cut-out
    • Soft start/soft stop
    • Push-open security
    • Anti-blocking device
    • Excess travel stop
    • Release from inside
    • Connection for pushbuttons, code keypads and key switches
    • Automatic cut-out `Open` and `Close` separately programmable
    • Partial opening programmable
    • Door travel speed `Open` and `Close` separately programmable
    • Soft run position `Open` and `Close` separately programmable
    • Soft run travel speed `Open` and `Close` separately programmable
    • 3 minutes light programmable for lighting the garage
    • Automatic timer function
    • Connection potential-free limit switch information

    Retrofitting of potential-free signal relay possible for;

    • Signal light
    • Wiping impluse
    • 3 minutes light
    • Final position message
    • Alarm system
    • Malfunction message
    • Error message
    • Reset function

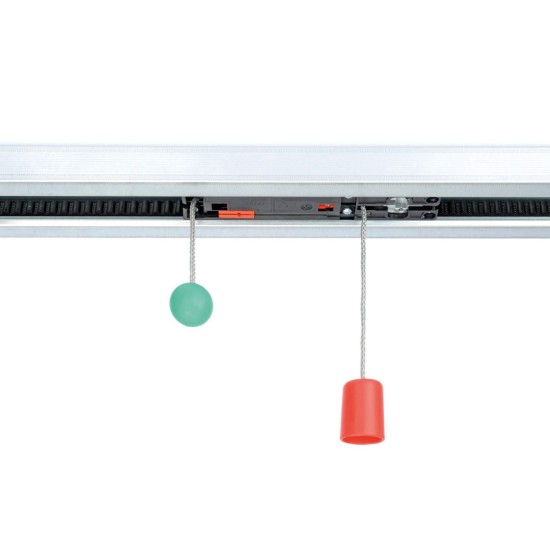

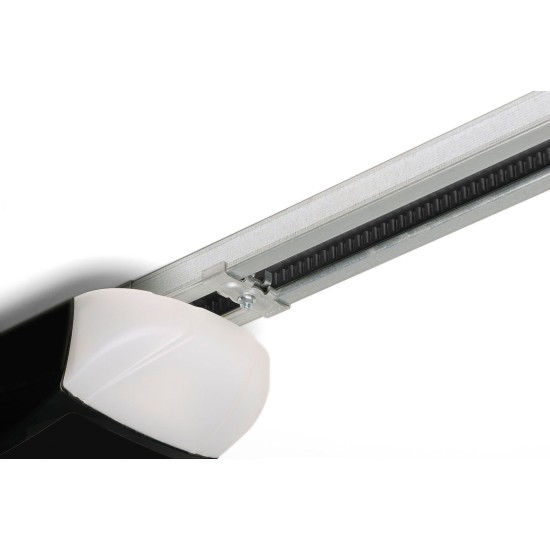

    A one-piece SZ11 STANDARD Beltdrive rail

    • Measurements (L) 3080 mm
    • Length of travel 2475 mm
    • Packing length 3140 mm
  • Stock: In Stock
  • Model: Marantec 270 Motor Head & Rail Kit
  • Weight: 18,000.00g
£275.95
£229.96
